In Winner, users can delete all the walls in a Design at the same time. For example, when a user adds a new Design to an existing Space, the floor plan of the first Design in the Space will be copied to the new Design, but the user may wish to draw a new floor plan.
In Room definition mode:
-
Under Room surface/objects, located on the right side of the screen, right-click on Room.
-
Select Delete all Walls.
Note: Or Press F8.
-
In the Information dialogue box, click Yes to confirm.

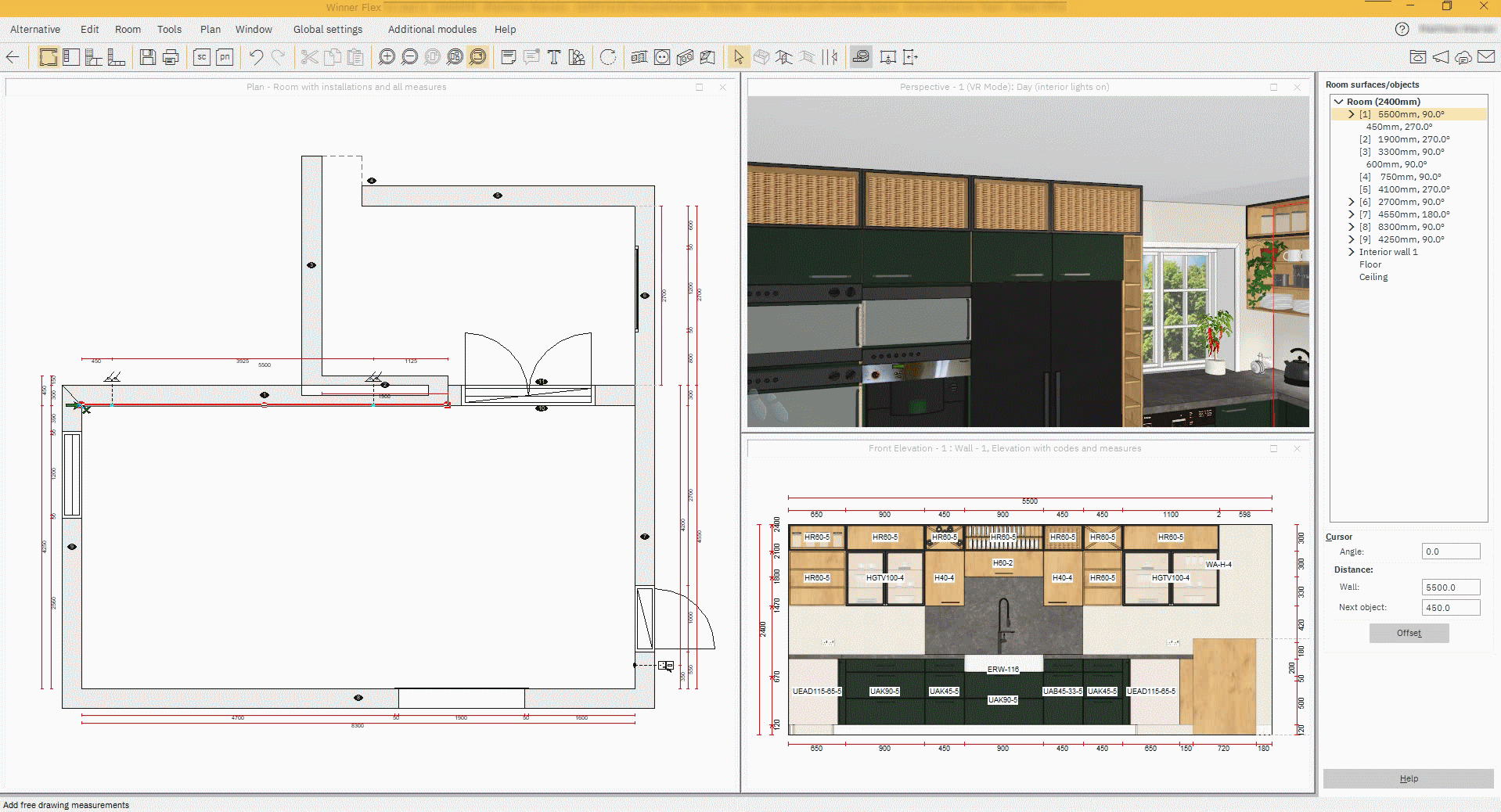

All walls and wall objects will now be removed and users will be automatically set to begin drawing new walls in the Plan window.
