Note: Before you start you will need an extension adding to your Winner account. You will also need to export your room measurements as a .json file, for example using iMapper.
Importing the plan from a .json file
Note: Importing a .json file will create only one alternative in Winner.
At Project level:
- Open or create a project.
- Select the space/milieu you want the design to be imported to.

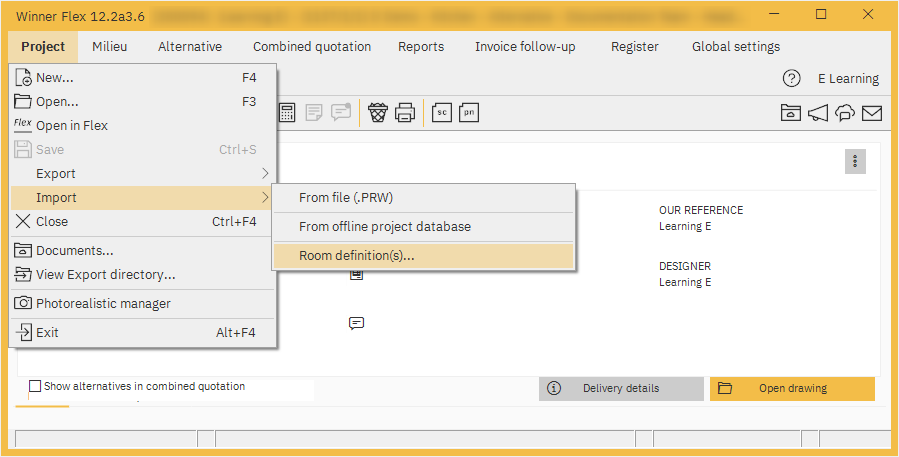

- Select Project > Import > Room definition(s)
- Select the files of type JSON files (*.json).
- Browse to the file, select it and click Open.
- Select the design model, worktop model and confirm the drawing settings.
- A new design will be created for this design and automatically open in Room definition mode.
Note! Imported windows and doors will be set to the default parameters set in Winner.
