In Winner, you can create Alternatives with two or more ceiling heights, by using a dropped or false ceiling. In addition you can also add sloping ceilings and apex ceilings click here for more information.
At Alternative, in Room definition mode:
-
Double-click in the centre of the Plan window.
- In Room Properties, enter the value for the highest point of the ceiling in Ceiling Height.
- In the Plan window, select the wall the dropped or false ceiling will be attached to.
- Click the Add Sloping Ceiling Object icon
Note: Or right-click and select Add Sloping Ceiling Object
- In Select object, select the desired ceiling object.
Note: To create a dropped or false ceiling, select the rectangular ceiling object.

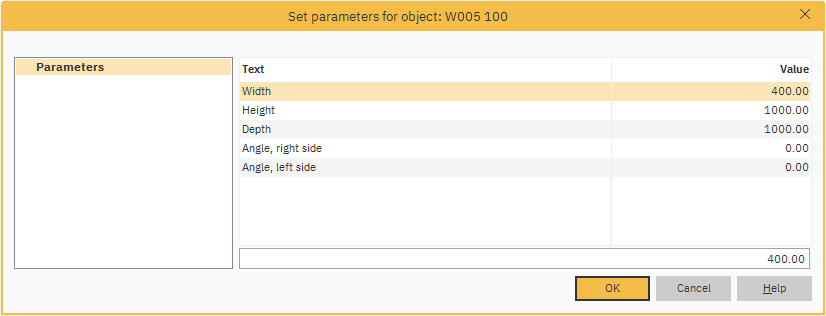

- In Set parameters for object you can alter the dimensions of the ceiling object you wish to add:
Width - Determines the width of the object. Defaults to the length of the selected wall.
Height - Determines the height of the object. The higher the value, the lower the ceiling will be.
Depth - Determines the depth of the object. The higher the value, the further the object will extend into the room.
Angle, left/right side - For some objects, for example sloping ceiling objects, the angle of the slope can be increased or decreased.
- Click OK.
- In Select placement for object you can alter the position of the ceiling object you wish to add in relation to the selected wall.
- Click OK.
Note: To create an apex ceiling, add sloping ceiling objects to opposing walls. For more information see article How to add a sloping ceiling
