Starting with version 12.3a1, when adding a window to a design, you can now choose whether to have the window reveal on the inside or outside of the wall.
- In Room definition mode , select the wall to which you are adding a window.
- Navigate to the Browser on the right side and click
.
- From the available options, select the required window and click OK.

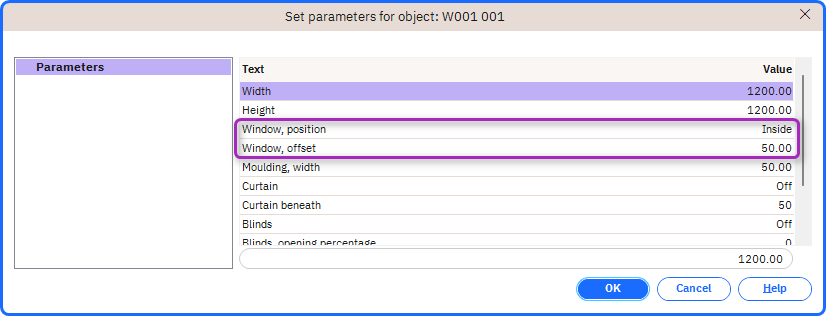

- In the Set parameters dialog, select Window position and set it to Inside or Outside, using the drop-down at the bottom of the dialog box.
- Select Window offset and change the depth of the reveal using the drop-down at the bottom of the dialog box.
This is how it will appear in the plan:
You can set a default value for the window position and window offset. Follow the steps below:

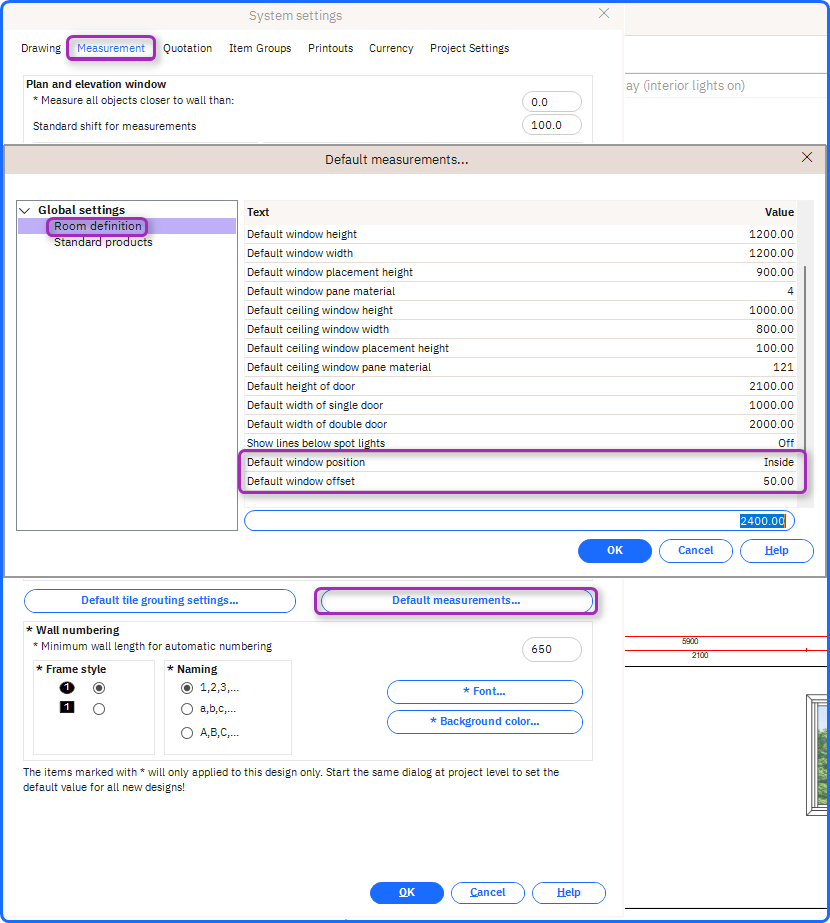

- Go to Global settings in the toolbar and select System settings.
- In System settings, go to the Measurement tab and select Default measurements.
- In the Room definition drop-down, you will see the options for Window position and Window offset.
NOTE: If you select Default window offset as -1.00 as shown below, it will select half the thickness of the wall and show the placement in the middle of the wall.
