What you see in a floor plan or elevation is dictated by what is selected in Visible layers.
If you cannot see your installation objects it means you have either selected the option Room without installations from the Visible layers menu or any other option which doesn´t include installations.
To change this follow the steps below:
For both options start in Room definition mode:
How to show installation objects on the plan:
-
Right-click on the plan and select Visible layers.
- Choose the most suitable option for you - If you are designing an electroplan, probably the best options for you to choose are room with installations and all measures or room with installations and base units.
-

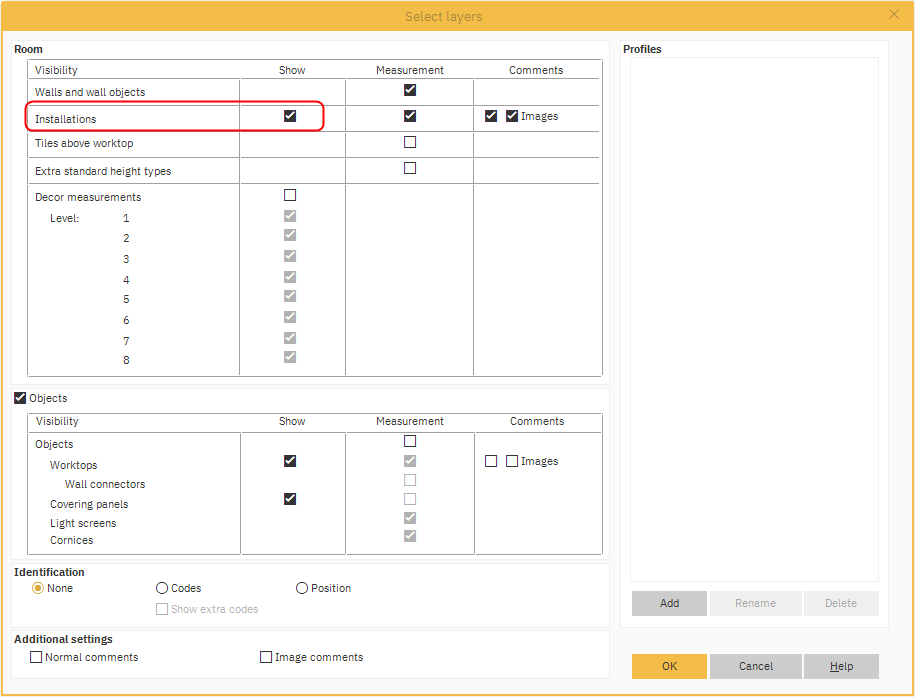

Right-click on the plan again and select Visible layers > Define profile.
- Check that the Installations > Show column check boxes are ticked appropriately.
How to show installation objects on the elevation:
-
Right-click on the elevation and select Visible layers.
- Choose the most suitable option for you (If you are creating an electroplan, probably the best options for you to choose are Installation plan, installations plan with objects or installation plan with objects and codes).
-

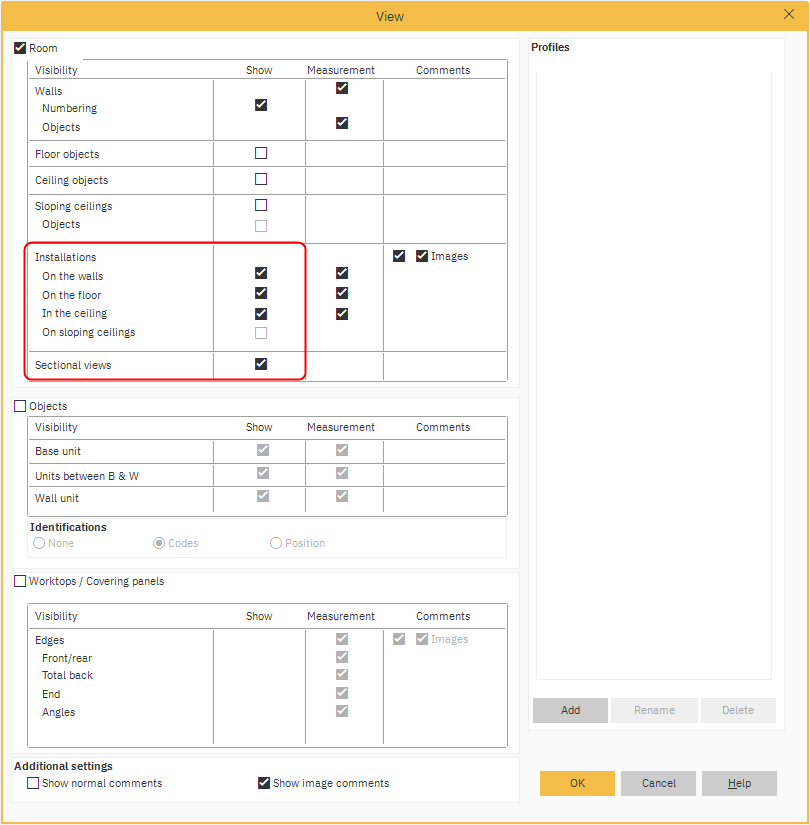

Right-click on the elevation againand select Visible layers > Define profile.
- Check that the Installations > Show column check box is ticked.
