At Alternative level, click on the Room definition mode icon in the Toolbar.
-

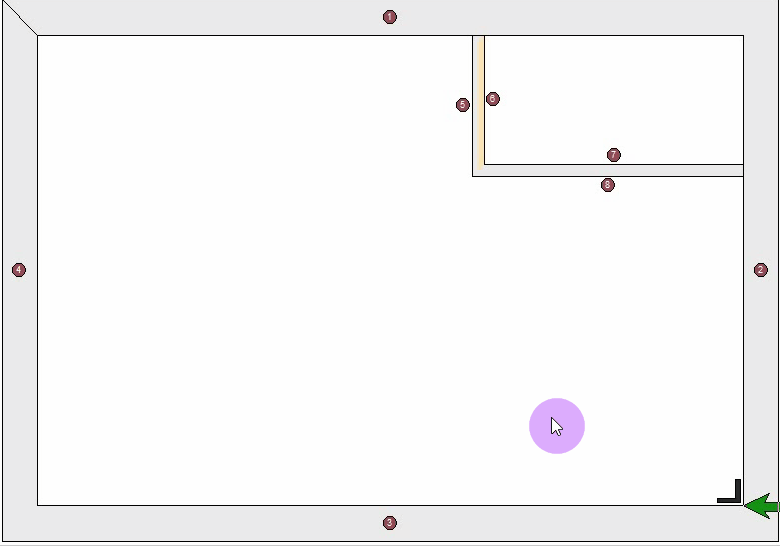

Left-click on the side of the interior wall in which the object is to be inserted. It will be highlighted in yellow.
OR
Angle the perspective view so that you can see the face of the wall you want to insert an object into, then click on the face of the wall to select it. It will be highlighted in red in the perspective and yellow in the plan.
-
Right-click and select Add Object.
-
In the Select object window, choose your object and click OK to confirm.
- Several dialog boxes will appear such as hinging, parameters and placement details. Complete these as required and click OK to confirm values entered.
