Room Properties allows you to alter the ceiling height, the thickness of exterior and interior walls and assign a colour or material to various surfaces in your design. You can also access previously saved room colours to decorate the room.
To access Room Properties, at Alternative level
- Select Room definition mode.
- On the menu bar select Room > Room properties...
OR - Double-click inside the Plan window. Keyboard shortcut is Ctrl+F5

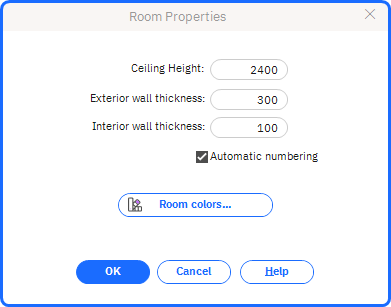

Note: If you are building the room when you insert the last wall to complete the room shape, this dialogue box will open automatically.
- Ceiling Height: This field shows the room’s ceiling height. The value can be edited.
- Exterior wall thickness: This field shows the thickness of the room’s exterior walls. The value can be edited.
Note: In Winner room objects will automatically be fitted to the wall’s depth when you alter the thickness of the wall. The thickness is based on the value entered for the first wall. - Interior wall thickness: This field shows the thickness of the room’s interior walls. The value can be edited.
Note: In Winner room objects will automatically be fitted to the wall’s depth when you alter the thickness of the wall. - Automatic numbering: When this field is selected, Winner will automatically allocate a number to all walls drawn in Room Definition mode.
- Room Colours: If you click this button, you can assign a colour or material to a given surface. For more information see article Assign material to surface.
