You can create a curve on your drawn worktop in both Furnishing mode and Worktop scheme mode. When you draw or edit the worktop, you are able to click on the corner point and then use the Round/cut corner tool. Take the following steps:
In Furnishing mode
- In your Alternative, click on the the Furnishing mode icon in the Toolbar.
- Click on the Draw/edit worktop icon in the Toolbar.
- Click on the Select tool icon which will appear to the right in the Toolbar.
- In your plan, select the corner or the worktop you want to round off. If you aren't zoomed in to the worktop, it may take several tries to click on the exact corner. You will know you have the correct point selected if the highlighted point looks like this:
- Click on the Round or Cut off corner icon in the Toolbar.
- In the Round/Cut corner window, select Arc. Enter your Radius and click OK.
Note: The curve can be adjusted later if necessary, by selecting the curve with the black arrow (Select tool), right-clicking and select Properties.
- Once you have finished rounding your corners click on the white arrow to close the function.
In Worktop scheme mode
- In your Alternative, click on the Worktop scheme mode icon in the Toolbar.
- In the Worktop plan window, click on the corner you want to round off.
- Click on the Round or Cut off corner icon in the Toolbar.
- In the Round/Cut corner window, select Arc. Enter your Radius and click OK.
- Once you have finished rounding your corners click on the white arrow to close the function.

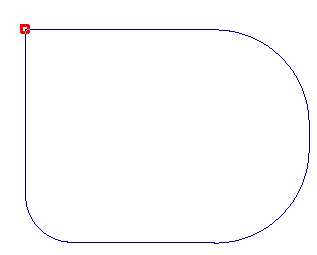

Should the corner be small or difficult to click on in order to highlight it, click and drag the cursor over the corner which will highlight the corner:
