In Winner, users can print the plan, perspective and elevation in several paper sizes and formats. For example, a plan together with several different perspective and elevation views can be printed at sizes A0, A1, A3 and A4.
At Alternative level:
- Select Alternative > Printouts > Print out special form.

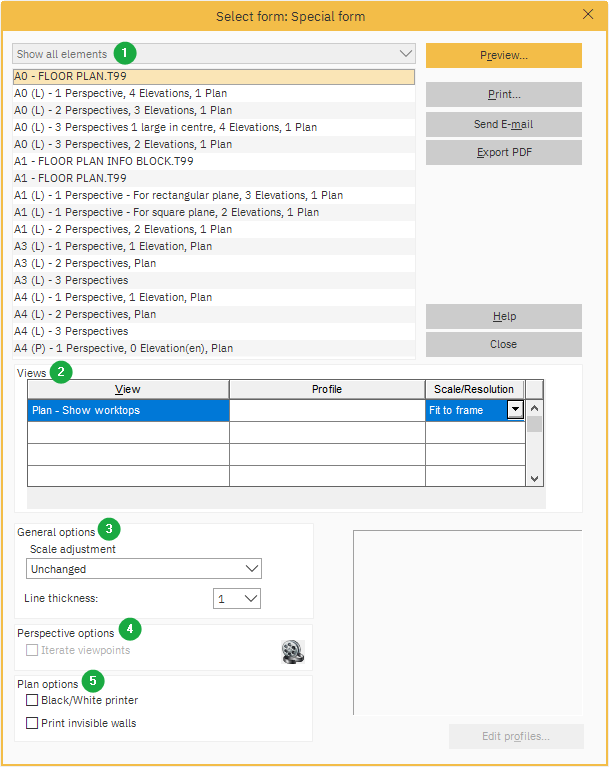

- In the Select form: Special form window, there are 5 sections where print forms can be selected and the settings changed.
Note: To print a form with multiple elevation or perspective windows, these windows must be set up before attempting to print. See Opening multiple views. - To print the selected form, click Print.
To export the selected form as a PDF file, click Export PDF.
To send the selected form via email, click Send E-mail.
Note: To preview the selected form, click Preview.
Select form: Special form
-
Element list
Shows the size and formatting of printouts available for selection.
-
Views
Settings for the selected print forms can be selected in the drop-down boxes Profile and Scale/Resolution. The selected Profile can be seen in the preview window at the bottom right of Select form: Special form window.
-
General options
This field is only available if a print form that includes a Plan has been selected. The scale of the selected print form and the line thickness can be adjusted in the Scale adjustment and Line thickness drop-down boxes.
Note: If the line thickness is changed, Winner will use the same line thickness value next time a Select form window is opened.
-
Perspective options
This option is not available for printing special forms. See Select form: Printing a Perspective drawing.
-
Plan options
This field is only available if a print form that includes a Plan has been selected.
