You may have created a point that divides a wall which you now want to remove. Take the following steps:
- Click on the Room definition mode icon in the Toolbar.

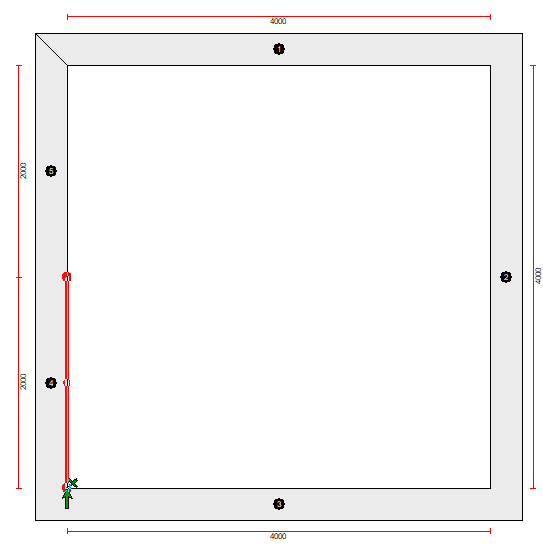

- To undo the wall division and remove the segmentation point, highlight the sectioned wall in the plan (this will be the one with the lower number of the two walls).
- Right-click and select Delete or press the delete key on your keyboard.
When deleting a connected wall, the wall numbering will automatically re-order itself.
If you are not able to see the wall numbering in the plan, you can activate it by:
- Clicking on the right mouse button and choosing the Visible layers menu.
- Select the Define profile option.
- The window View will now appear.
- Check that the Show box is activated for the Walls numbering field.
