How to draw a curved wall

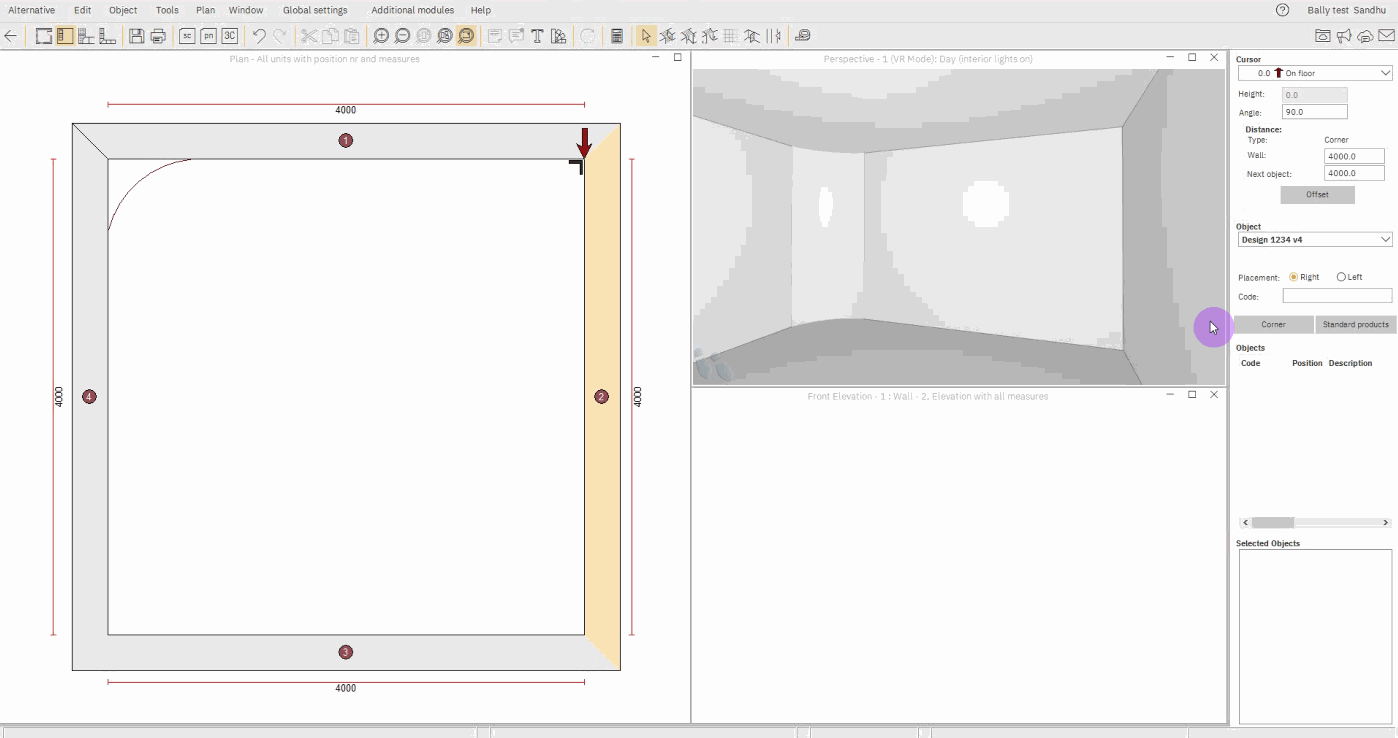

1. Move the cursor to the corner of the room that you want to look curved.


2. Select the option Standard products.


3. Select the option Interior, building blocks from the menu.


4. Select the item Curve W500 214B.


5. Click OK.


6. Set the height position as On floor, (Up) and click OK.


7. Set the Height of the object to the same height as the walls in the plan (the default height is 2400mm).


8. Set the Radius of the object to the radius of the curve that you need.


9. Click OK.

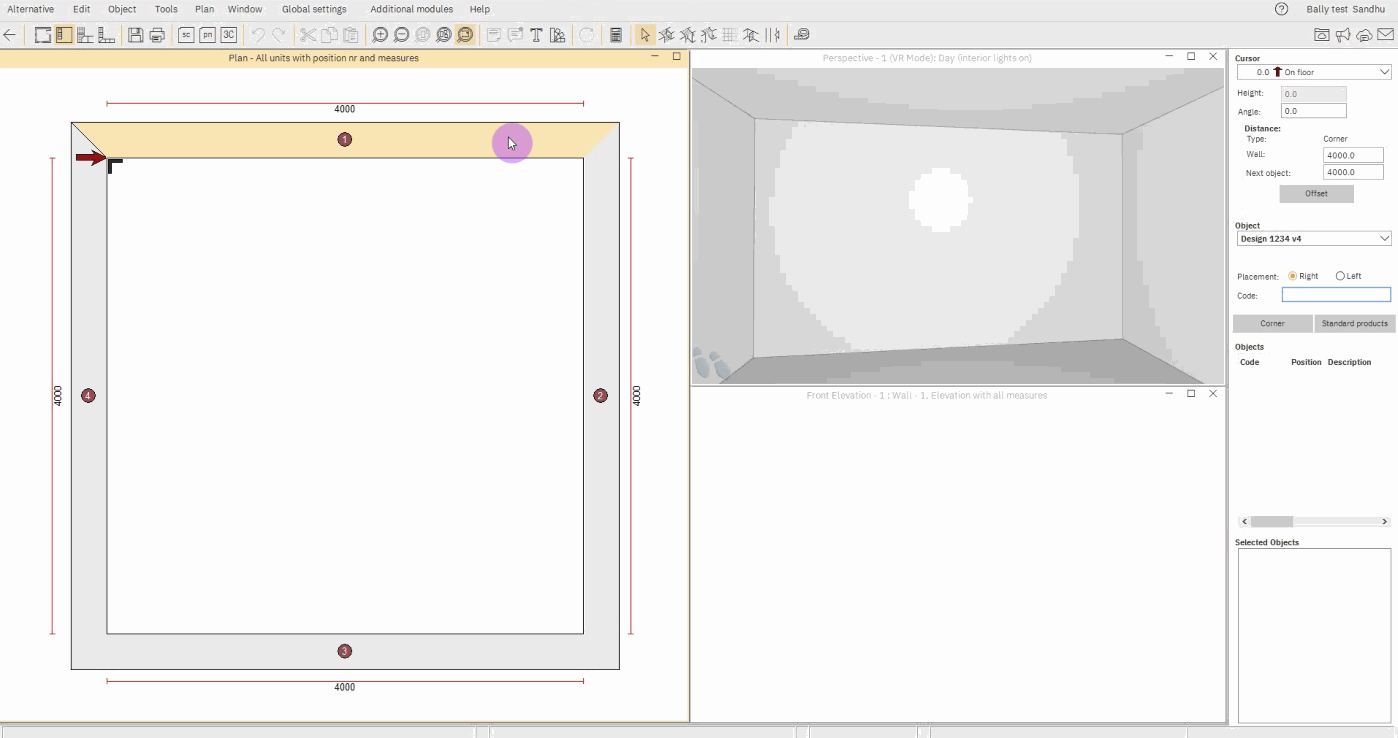

1. Click on the Furnishing mode icon


2. Click on the Free drawing of filler icon.


3. Click on the inside corner where you want to have a curved wall and drag it to the length that you want the curve to follow.


4. Click or drag the filler line to where the curve will end on the opposite wall.


5. Click on the Close figure with one line icon.



6. As it is a filler, the Select product window will prompt you to select a code.  Click Skip.


7. In the Object properties window, change the Height of the object to the same height as the walls in the plan (the default height is 2400mm).  Click on Colour in the Text field and in the drop-down select Wall to make the colour the same as the walls in the room.


8. Click OK.


9. Click the Free drawing of filler icon.


10. Click the Select tool icon.


11. Select the line of the drawn filler you want make curved.


12. Right-click and go to Swap line/arc.


13. Click and hold the centre point of the curved line and drag inward or outward to increase the curve radius as required.
    NOTE: To drag in smaller increments hold down shift or shift and Ctrl key whilst dragging.

It is not possible to add a window or door object to the curved wall, as it is created with a filler or an object from standard products . However you can add an image of a window or door to give the appearance in renders that they are in the curved wall. To do this follow the steps below:

1. In furnishing mode select the icon for Free drawing of filler


2. Use the arrow to create a filler to the width required for the window or door and close it behind the curve.


3. In Set height position set the height required for the window or door.


4. In Confirm select Yes.


5. In Object properties set the height of the window or door.


6. Select the Colours button. In Assign material to surface click Select material.


7. Select Customised for the Alternative and then Import from file.


8. Find and select the required image of the door or window and click Open.


9. In Customised material properties you can either specify a size or stretch to surface size.


10. Click OK.
