In Furnishing mode, there is a button on the right-hand of the screen underneath the Code box called Corner. This option enables you to automatically create a corner fitting for your selected cabinet by adding fillers and building blocks.
-
In your Alternative, click on the Furnishing mode icon in the Toolbar.
-
You can either enter a code in the code box and then click the Corner button, or click the Corner button on its own and in the Select product window select an item to be integrated.
-
The Corner arrangement window will now appear.

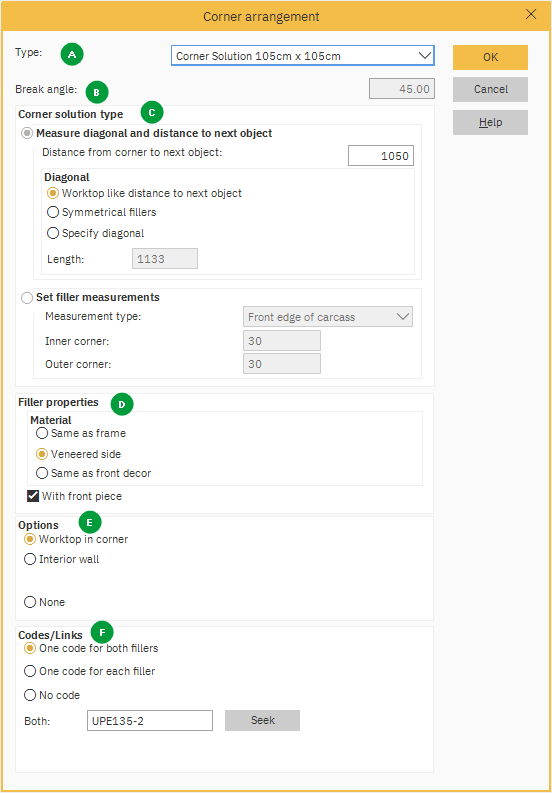

Corner arrangement window
A. Type – the type drop-down will show if there are Corner solutions prepared for the chosen unit. If there are none, it will just show Standard. Make your selection.
B. Break angle – you can specify the break angle if required by entering the figure in the box.
C. Corner solution type – in this section you can make alterations to Measure diagonal and distance to next object, Diagonal length and Set filler measurements.
D. Filler Properties – change the material type to match the sides, frame or door here.
E. Options – you can select worktop in corner or if it has a false wall here.
F. Codes/Links – you can allocate a code to the fillers here, or click No code.
-
Once you have made your selections in the Corner arrangement window, click OK to confirm.

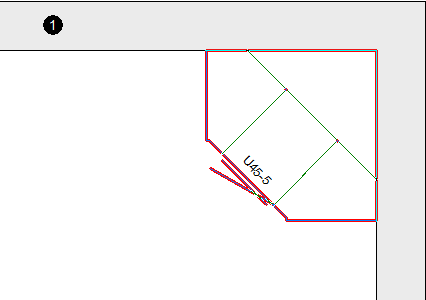

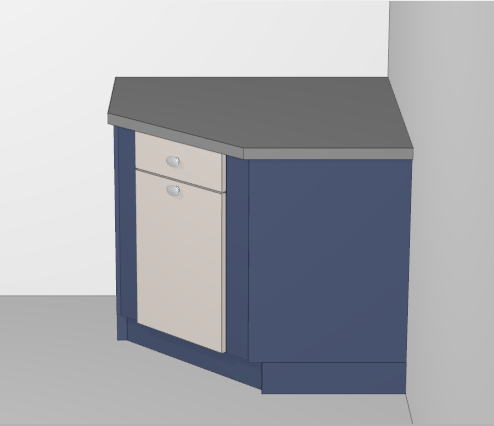

In the examples below you can see the unit with the fillers around it and worktop created on it.
