Adding multiple plinths, cornices, pelmets and ceiling fillers to the same room

The example below uses a plinth but the steps are the same for cornices, pelmets and ceiling fillers.

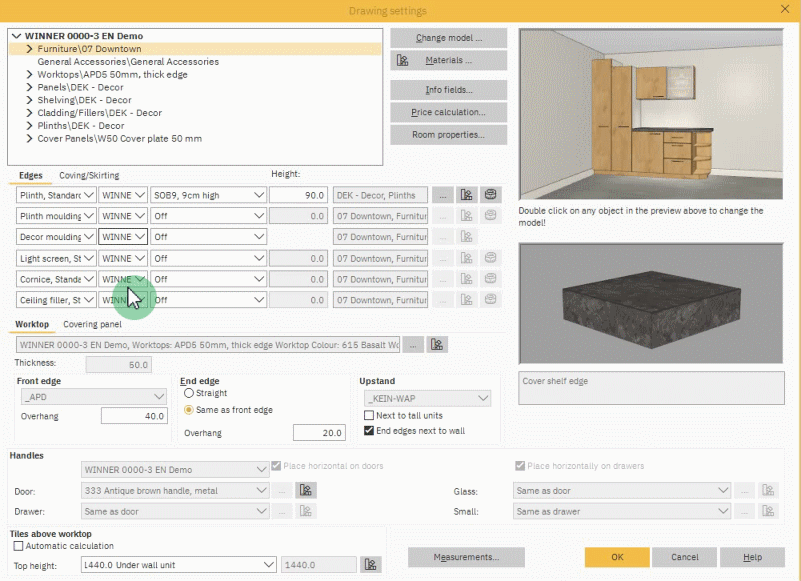

1. Press F7 on your keyboard to open the Drawing settings, or menu option Alternative>Settings.


2. Find the Plinth, Standard drop-down under Edges.


3. Select the drop-down and choose New from the list.


4. This will now create an Option 1 in the list.


5. Make the changes along that row as required.




6. Choose the new model settings for this plinth by clicking the More options icon    this will open the plinth section of the chosen catalogue.


7. Click OK to confirm your choices.


8. Click OK again to save the changes.



1. Left-click on a unit, or Shift + Left-click to select a run of units.


2. Right-click to bring the quick menu up.


3. Choose Set height type.


4. Click on the drop-down box and select the plinth option required.
   Note: This will apply all changes made in the option not just the height.


5. Click OK to save your changes.

1. Left-click on a unit, or Shift + Left-click to select a run of units.


2. Right-click to bring the quick menu up.

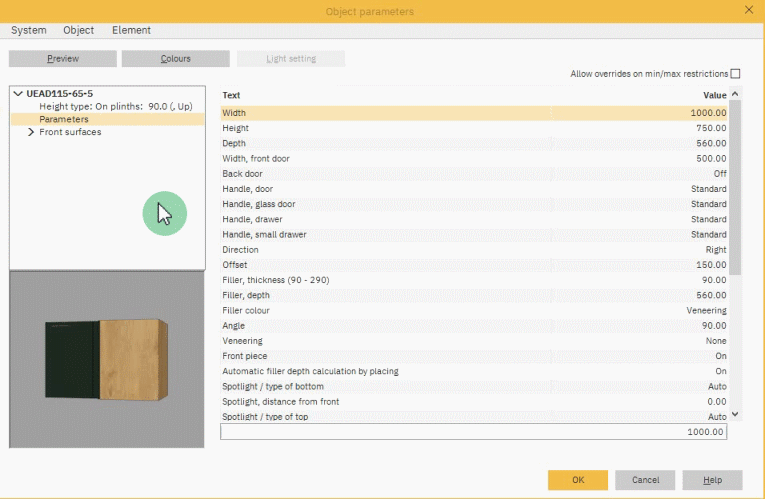

3. Choose Properties at the bottom of the list.


4. Find cornice, pelmet or ceiling filler in the list of properties. This will say Auto by default.


5. Change the drop-down, at the bottom of the window, from Auto to Option 1.


6. Click OK to save your changes.

Repeat these steps for more Cornices, Pelmets and Ceiling Fillers.
