How can I show internal cabinetry of units?

Note: This feature is catalogue dependent.

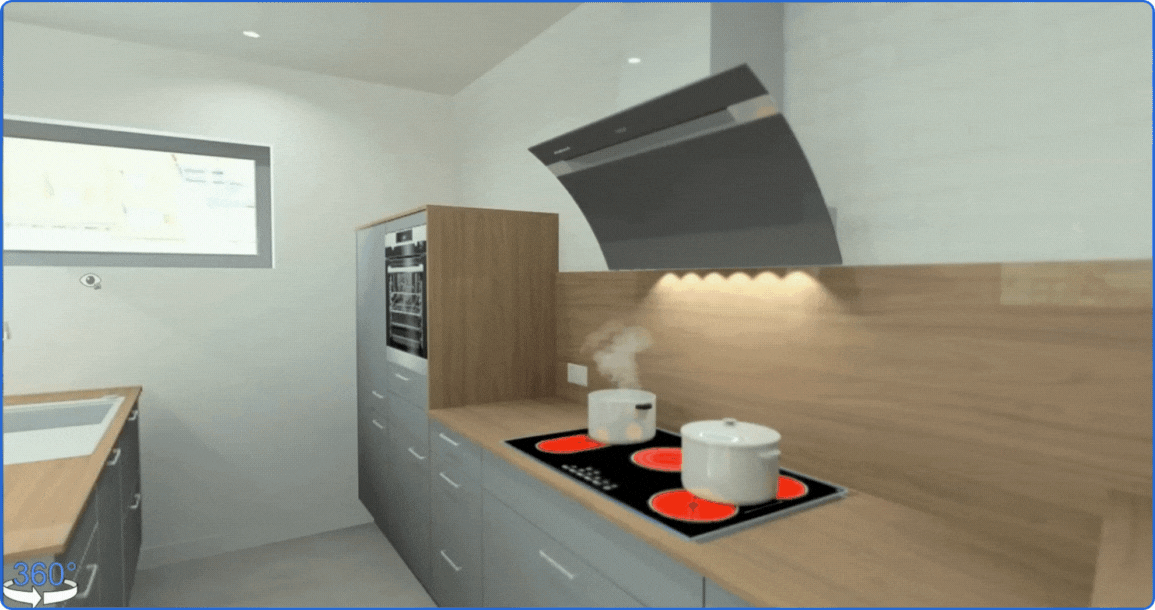

1. Select or multi-select the cabinets


2. Right-click and select Open cabinet.

   OR

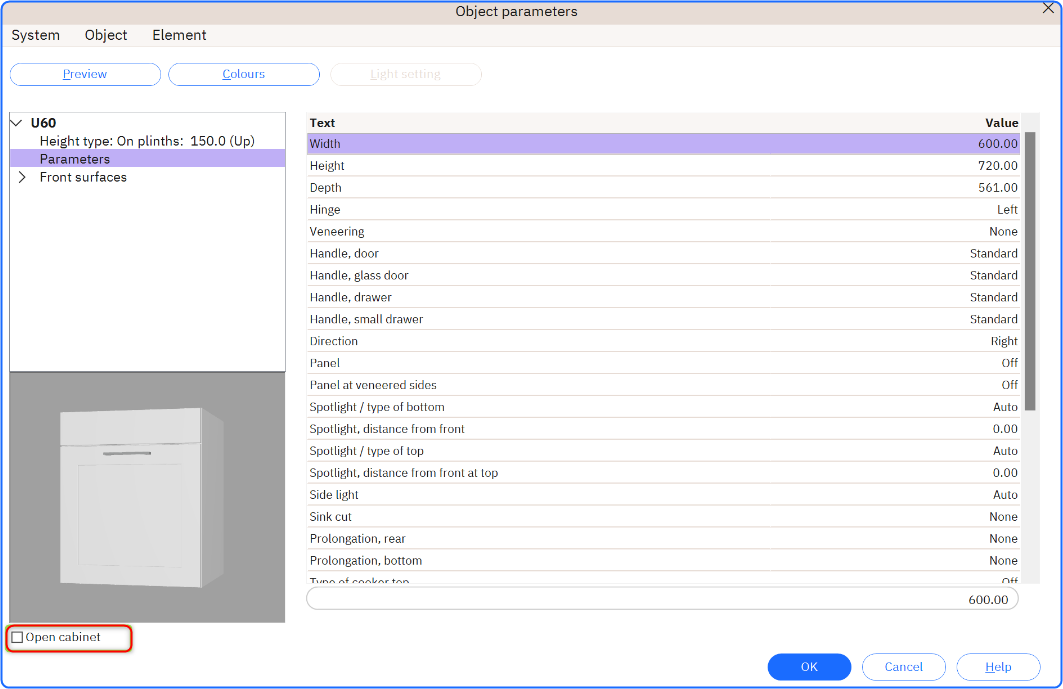

3. If you wish to open one cabinet double click on it and in the Object parameters window check the tick box Open cabinet.



   OR

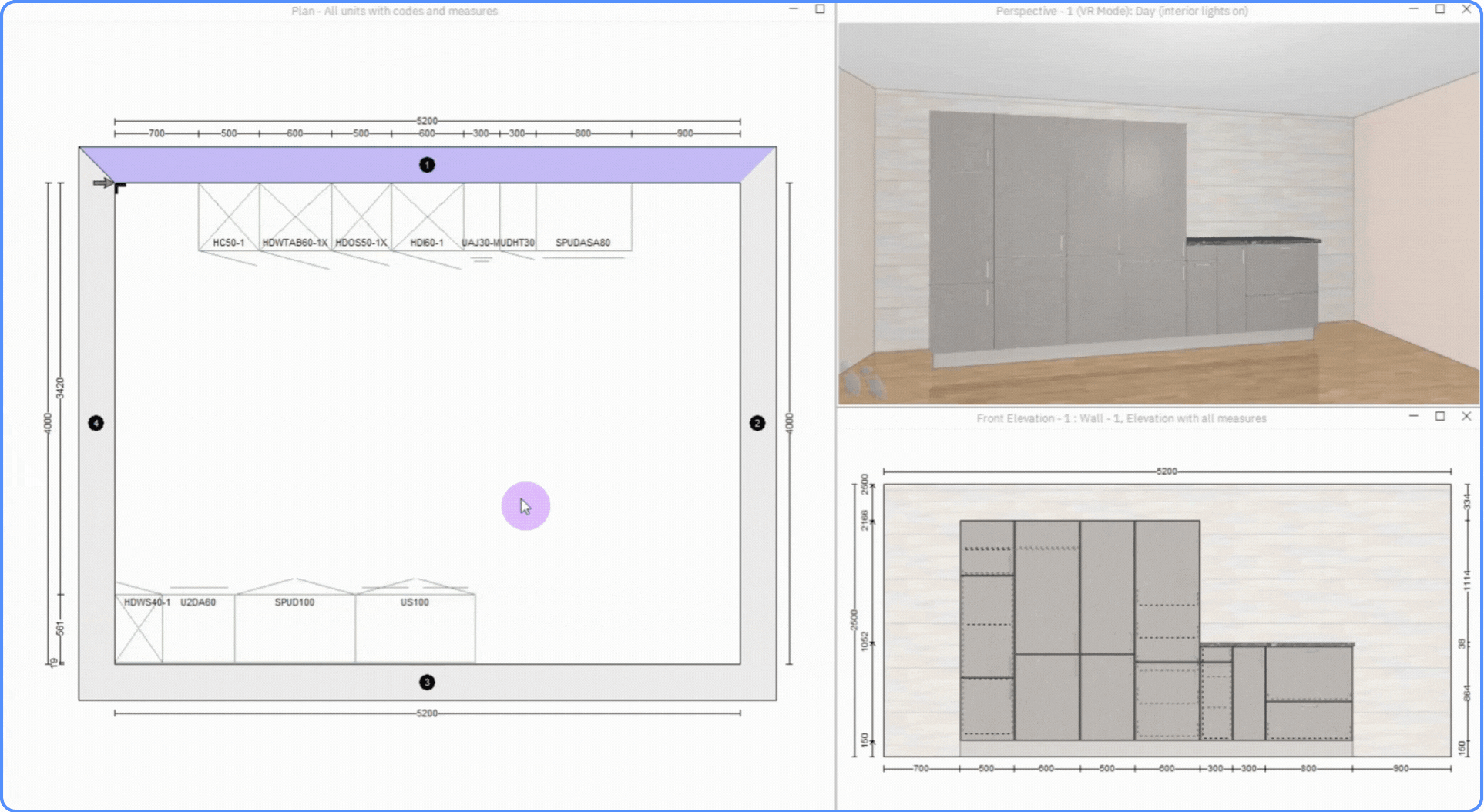

4. If you wish to open all cabinets in the drawing click in the plan and, on the menu bar, select Alternative > Open all cabinets.

5. To close them select them again and right-click and click on Open cabinet again.

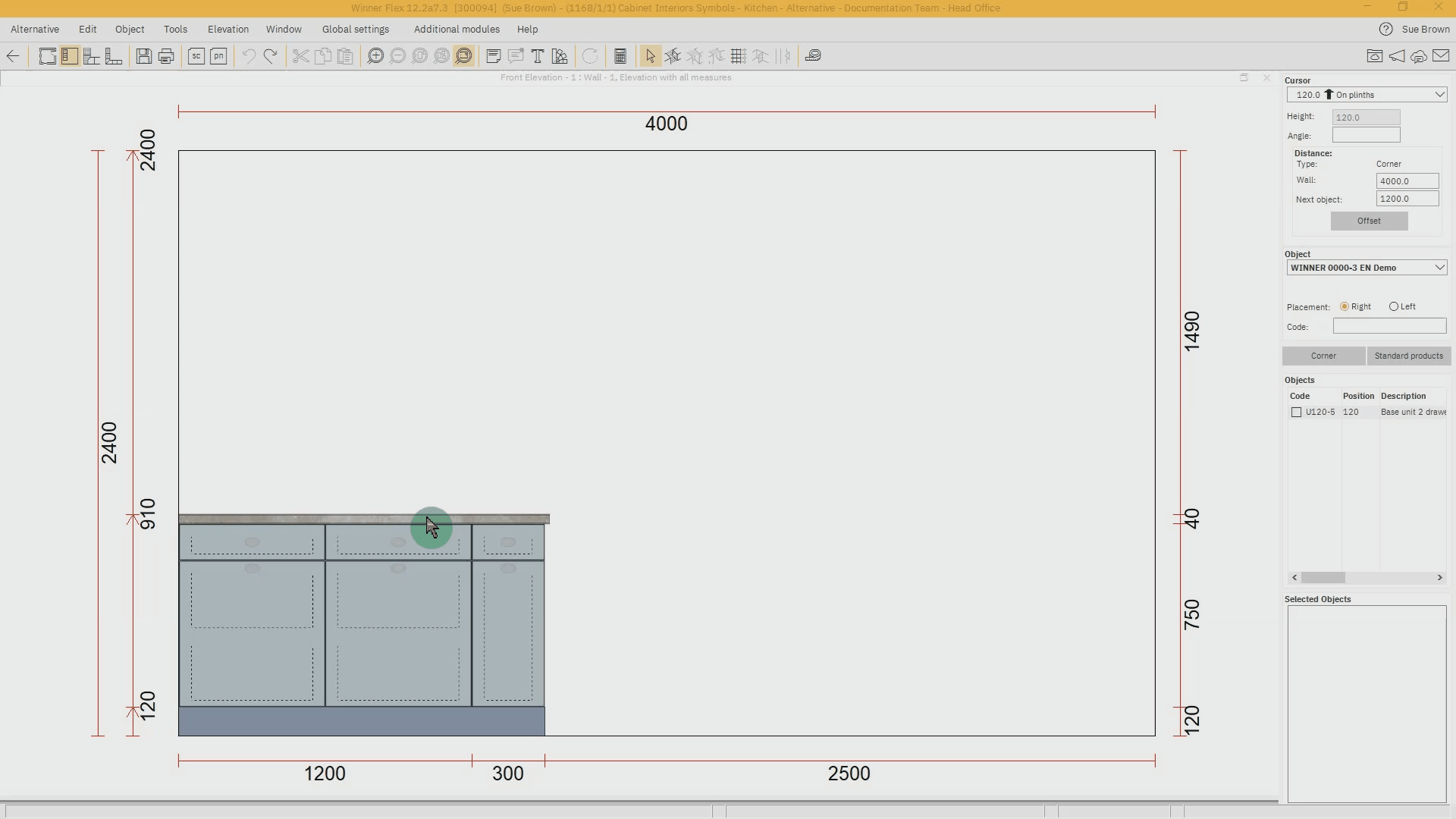

1. Click Global settings on the Menu bar.


2. Select System settings > Drawing tab.


3. In the Elevation view section click the check box *Automatic additional symbol.


4. Click OK.


5. The internal cabinetry symbols will appear in the Front Elevation window.  The example below shows internal drawers and an internal pull out waste bin.

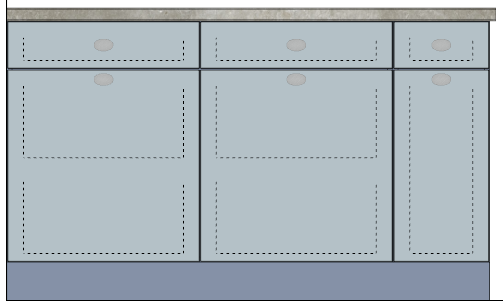

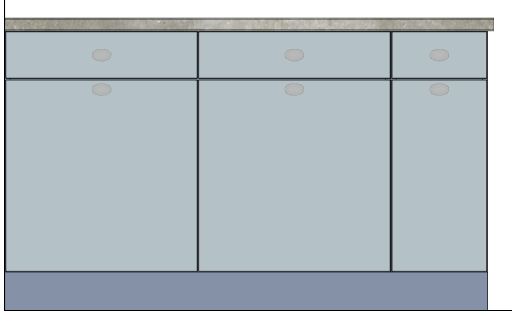

Normal elevation view	View with Automatic additional symbols showing 2 drawers and 1 pull out waste bin

Once you have shown the symbols, it is possible to change the Additional Symbols, for example, choosing 3 drawers instead of 2:

1. Double click the unit or right-click it and select Properties.


2. Select Front surfaces and select the Front side where the change is to be made, for example Door.


3. Select Parameters.


4. In the list of parameters, on the right-hand side, select Additional symbol in elevation.


5. From the drop-down at the bottom of the list select the combination you require.  In our example 3 drawers.


6. Click OK.

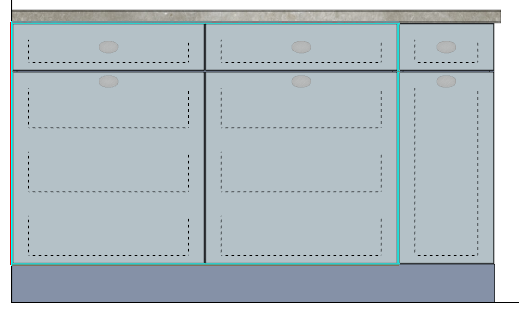

View with symbols amended to 3 drawers
