In Winner, the default setting of toekicks being placed under units is automatic.

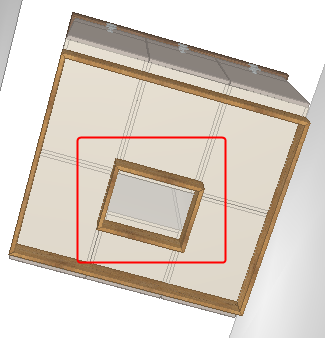

As a toekick is automatically generated, if a unit of shorter depth is placed next to other units, for example to make an island or peninsula/breakfast bar, Winner will create a toekick where it is not necessary.
Solve this by adding an automatic filler on the unit with shorter depth.
- Select the required cabinet.
- Right-click and select Automatic offset from wall > User defined offset.
Winner Design will automatically add a filler between the cabinet and the wall or island. The unit behind the shortened one will effectively act as a wall for the unit.

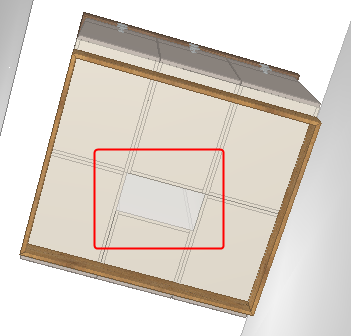

This will remove the automatic toekick as the unit with shortened depth is now connected to the units next to it:
