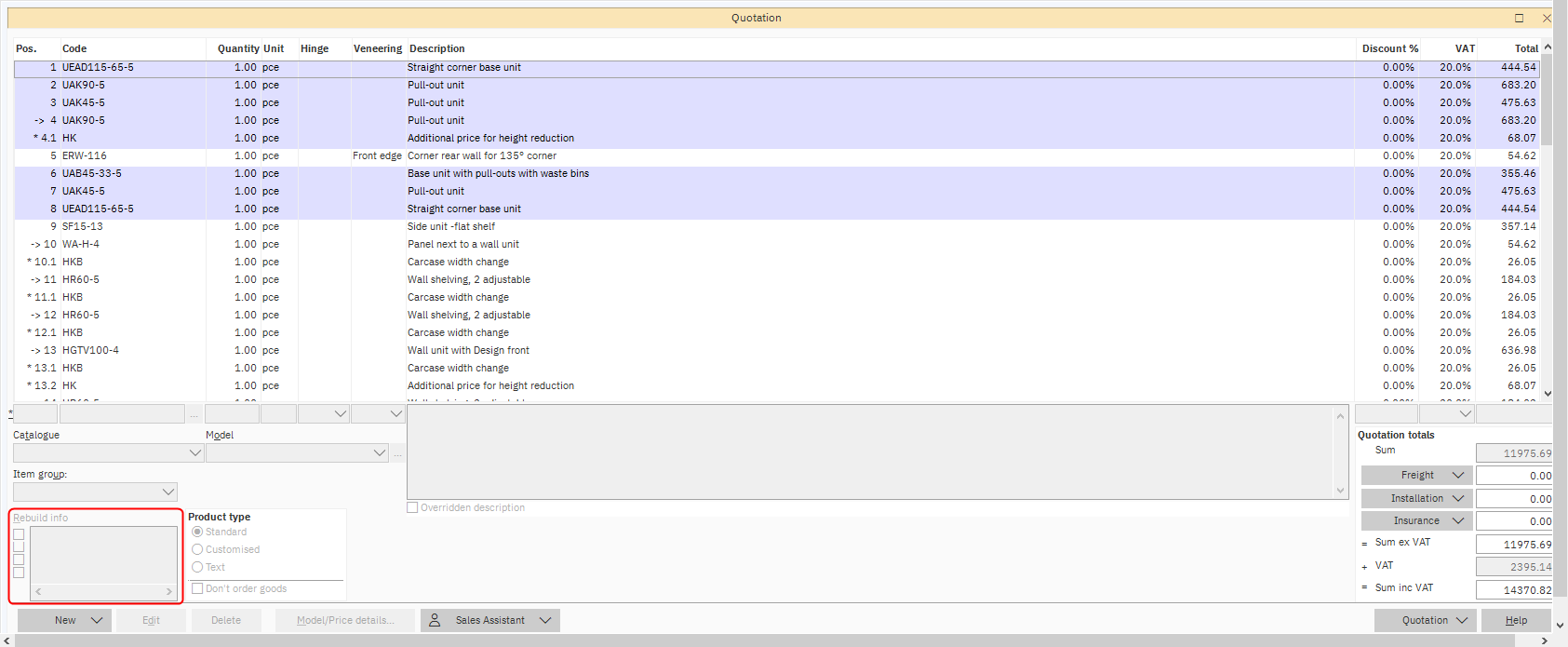

In Winner, users can edit the default details they wish to be displayed in the Rebuild info section of a Quotation. This section displays information about any changes made to the object in the selected item line.
For more information on rebuilding an object, see Rebuilding a unit.
How to edit the default details show in the Rebuild info section
At Project or Alternative level:
- Select Global settings>System settings.
- In the System settings window, select the Quotation tab.
- Under the Quotation tab, in the Rebuild information for new objects section, users can tick or untick the default information to be shown in the quotation.
Users can choose to show or hide:
- Show parameter values confirmed by user - Information on the values of the parameters the user confirmed when placing an item for example, a filler with an adjustable width of up to 100mm, which was inserted with a width of 50mm.
- Show parameter altered by user - Information about the parameter values that the user has changed after placing an item for example, altering the dimensions of an item outside of the normally adjustable values.
- Show information for rebuilt front - Information if the front of an item has been modified for example, the door of a unit being changed to a drawer.
- Show information for altered colors - Information that the user has redefined manually for example, changing the color or material of an item.
- Click OK.
