In Winner, users can print their worktop scheme, export it as a PDF or send via email. This is useful when supplying the worktop scheme to manufacturers, suppliers or fitters, for example.
At Alternative level, in Worktop scheme mode:
- Left-click the Worktop view to select it.
- Click the Print icon:
Note: Or press Ctrl+P on your keyboard. Or right-click the Worktop view and select Scheme view > Print.
- In the Select form: Worktop scheme window, select the desired format.
- To print the worktop scheme, click Print.
To export the worktop scheme, click Export PDF.
To send the worktop scheme via email, click Send E-mail.
Note: To preview the selected form, click Preview.

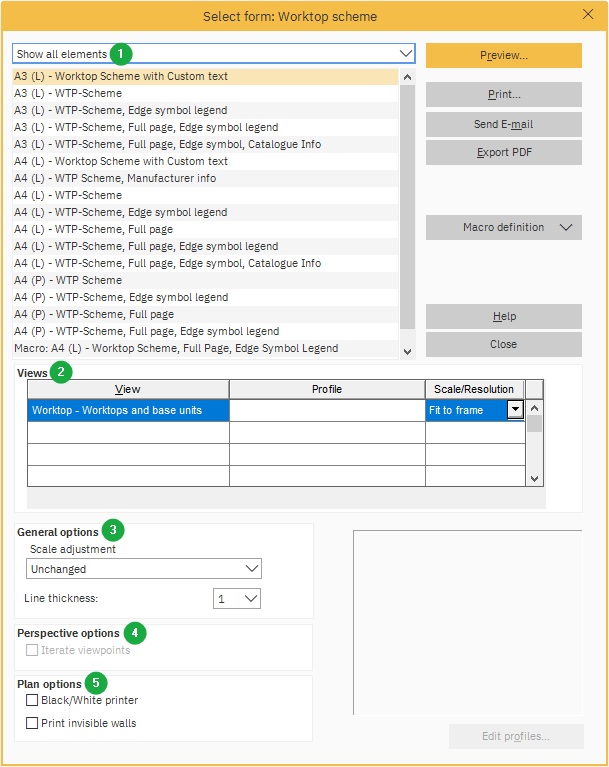

Select form: Worktop scheme
-
Element list
Shows the size and formatting of printouts available for selection.
-
Views
Settings for the selected print forms can be selected in the drop-down boxes Profile and Scale/Resolution.
-
General options
The scale of the selected print form and the line thickness can be adjusted in the Scale adjustment and Line thickness drop-down boxes.
Note: If the line thickness is changed, Winner will use the same line thickness value next time a Select form window is opened.
-
Perspective options
This option is not available for printing worktop schemes. See Select form: Printing a Perspective drawing.
-
Plan options
Select Black/white printer to print the worktop scheme in black and white, without colour. Select Print invisible walls to show all walls on the selected print form.
