For every object a height position is registered in relation to standard measurements in the catalogue.
If you want to alter height type for an object you must highlight the object and then either
-
Select the Menu option: Object > New height type (in furnishing mode).
OR -
Right click the object and select Set height type.

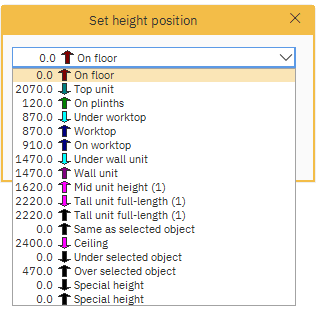

In this list you find predefined heights such as On floor, On plinth, Under worktop etc.
Set new height type

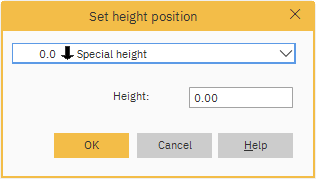

You can also select the height type Special height (the direction of the arrow indicates whether it is special height up or special height down, as in the example below). Enter the special height in mm in the Special height field and click OK.

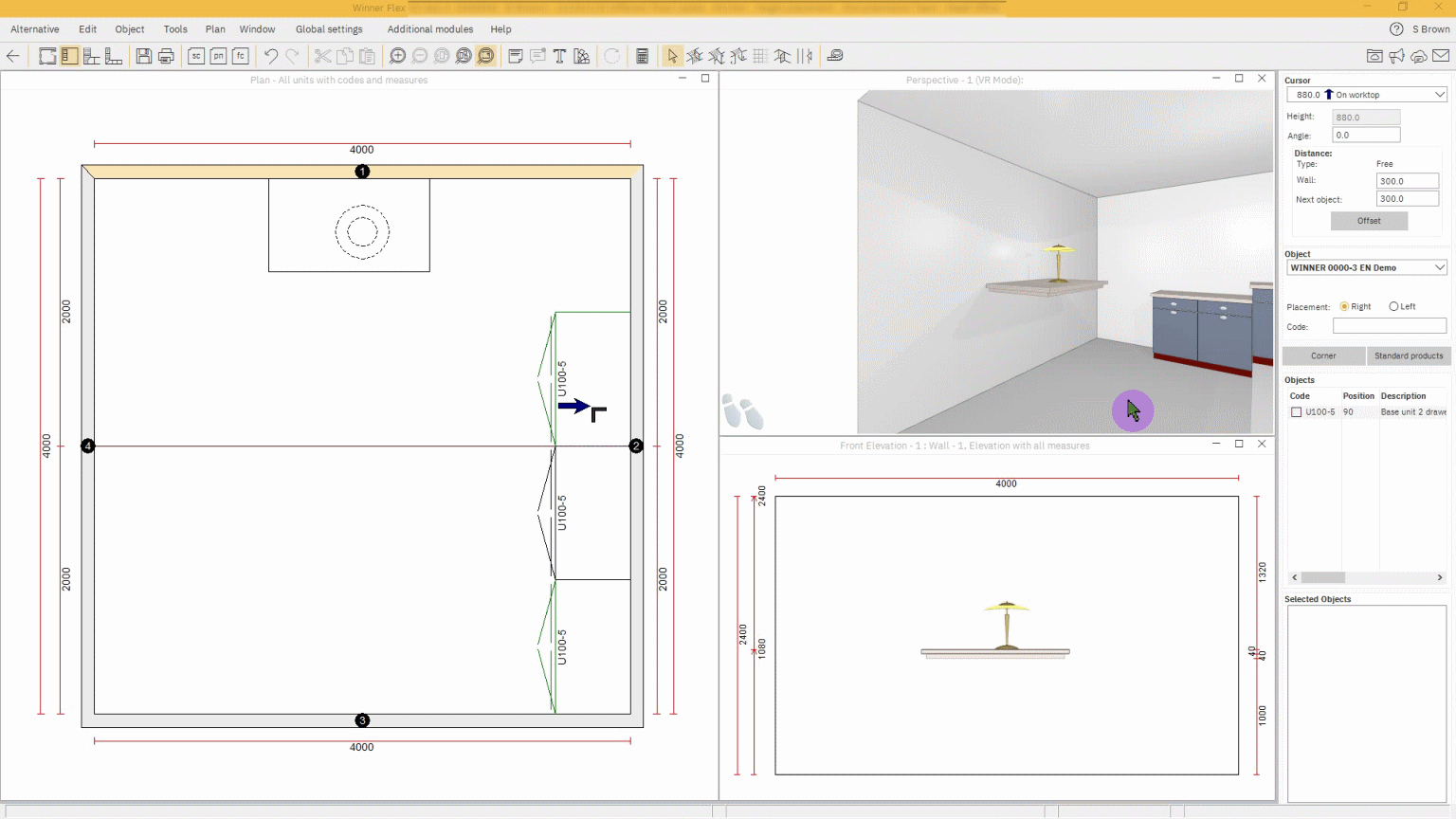

Set height position on worktop
To place an object such as a basin or a decorative item on a worktop use the height type On worktop. This height type places objects at a height calculated from the formula Plinth height + Standard Base unit height + Worktop thickness.
If the worktop you have placed the object upon is not located at standard worktop height then Winner will automatically discover this.
When the dialogue box Set height position appears, Winner gives you the Special height (Up) option where the worktop’s special height is specified. Select this special height and the object will be placed correctly.
Note: Once placed if you then move it to a worktop with a different height it automatically adjusts its placement to suit that height.
