In Winner, users can import the room definitions from an .ifc file.
Note: In order to activate the import of an .ifc file you need to contact support. If you are on version 12.2a6 or later the option to export .ifc is included with your account.
Winner Design export Add-in Revit
- Start Revit and go to a plan-view.

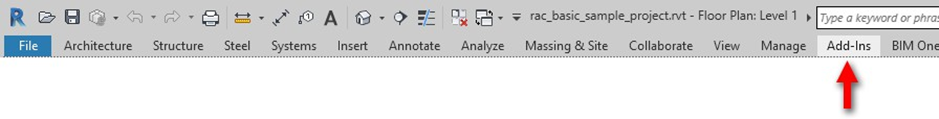

- On the menu bar, look for Add-Ins and click on it:

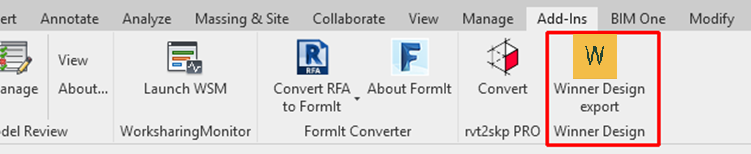

- If the Winner add-in has been correctly installed, a Winner icon and the text Winner Design export will appear somewhere on the ribbon bar:

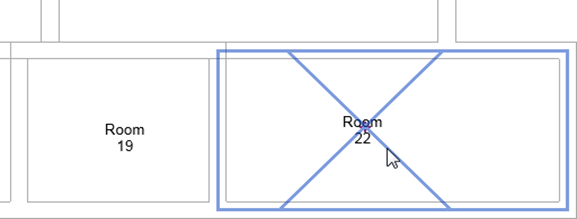

- Click on the Winner Design export button and then select a room with the mouse pointer. The room must have been created for the add-in to work:
- A dialogue will pop up where you select the name and placement of the exported file. The file will be of type .json, but it is important not to write the file extension (write MyExport and not MyExport.json)
- The exported file can now be imported by the Winner Design-application.
Revit tips for Winner export add-in
This pdf guides you on how to obtain the best possible results when using the Winner Design export add-in. The add-in requires attention to certain aspects of the room definition and doors/windows.
Importing the plan into Winner from a .ifc file
Note: The .ifc files only will be imported into Winner if it has been exported from the software Autodesk Revit. When importing a .ifc file, Winner looks for Spaces (rooms), so it is important that the Spaces are defined when the file is exported.
At Project level:
- Open or create a project.

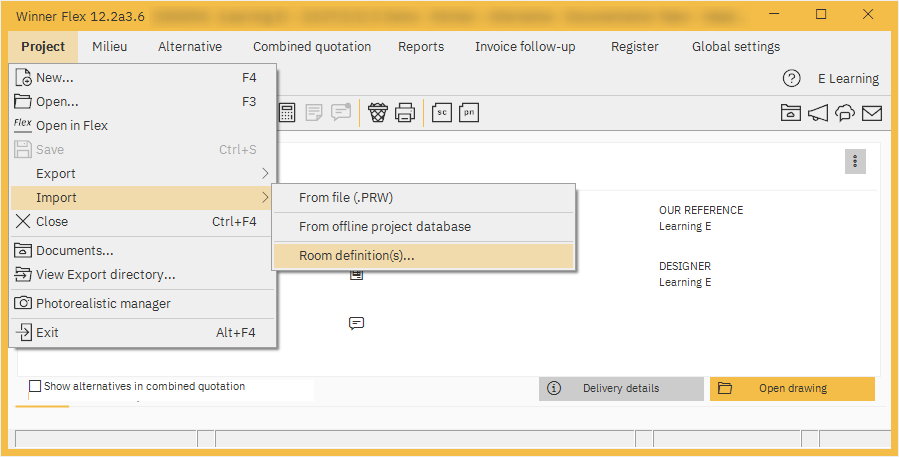

- Select Project > Import > Room definition(s).
- Select the files of type IFC files (*.ifc).
- Browse to the file, select it and click Open.
- In the Select spaces to import from IFC file window, each space Type is a reference to a milieu, and each space Count is the number of alternatives for that milieu. Tick a Type box to select and click OK.
- Next, you will be asked to select the alternative model, worktop model and confirm the drawing settings for each space count you import. This can take some time to complete if you select multiple spaces, or the count number of one space is high.
The file import is now complete:
- A milieu is created for each space type imported.
- An alternative is created for each instance of that space type.
