Countertops over base units are automatically created and can then be cut and assigned a code. If you do not want a countertop over the unit, take the following steps to adjust the Object parameters.
- In your Alternative, click on the Furnishing mode icon in the Toolbar.
- Select the unit with the countertop you want to delete.
Note: You can select multiple units by pressing down Shift as you select or lasso around the units to select them.
- Right-click and select Properties, or press Ctrl & F5 on your keyboard.

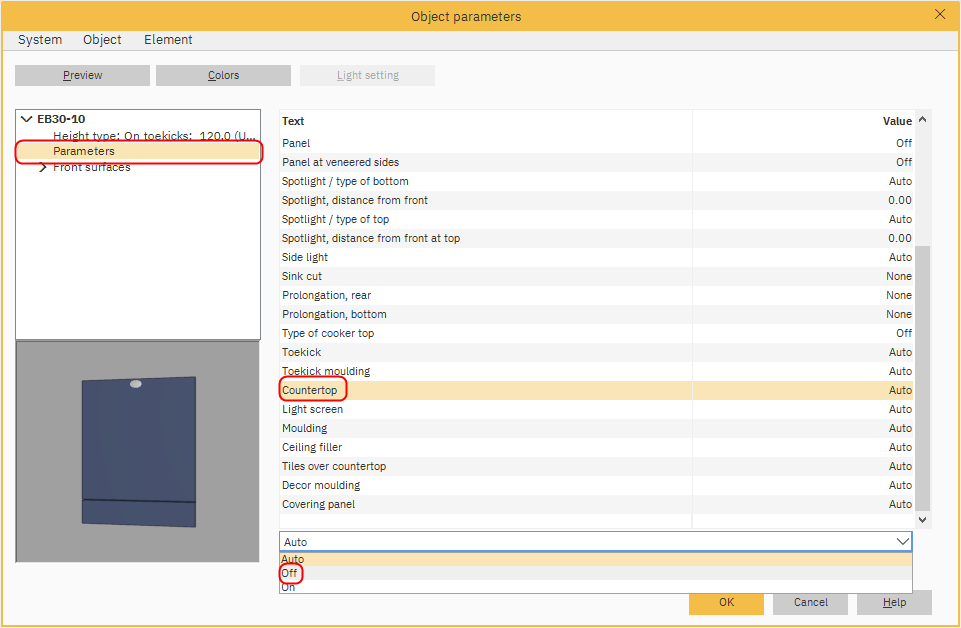

- In the Object parameters window, select Parameters in the list on the left.
- Select the countertop option in the list on the right and change the setting to Off in the drop-down at the bottom.
- Click OK to confirm.
Note: If the countertop still shows after setting the countertop option to Off, then a code has been assigned to the countertop that needs to be removed:
- Click on the Countertop scheme mode icon in the Toolbar.
- In the Countertop codes window, select the desired countertop and click the Delete button at the bottom.
- Select Yes to confirm deletion of the object. The countertop you set to off will now be removed.
