There is a difference between door hinge illustration in the USA and in Europe. To change the appearance of hinge symbols:
- Exit Winner.
- Search for the program Winner info in your Windows Apps and open the program.
- Select the Quick fixes tab.
- Click the drop-down box Request
- Select Setting: Set default hinge symbol in elevation to US-Style or Setting: Set default hinge symbol in elevation to Euro-Style
- Click Run then Save and Close

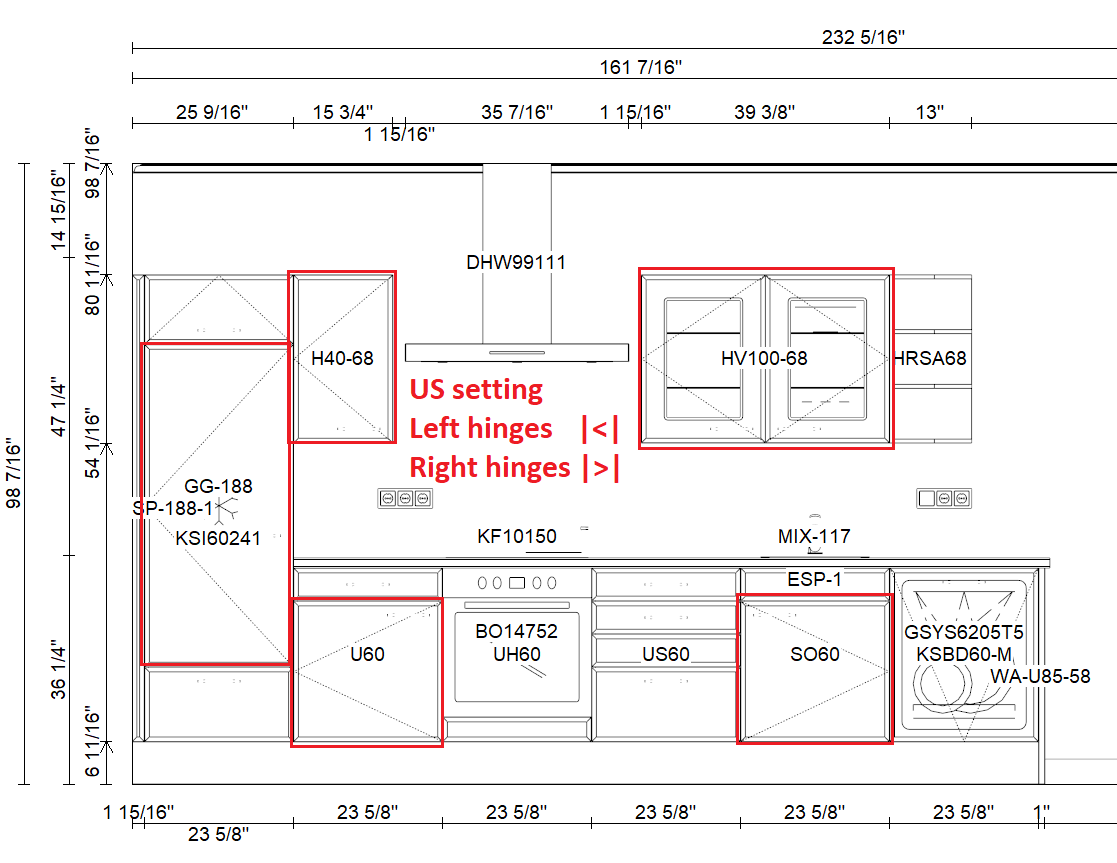

United States of America hinge symbols
|<| for left hinged doors
|>| for right hinged doors

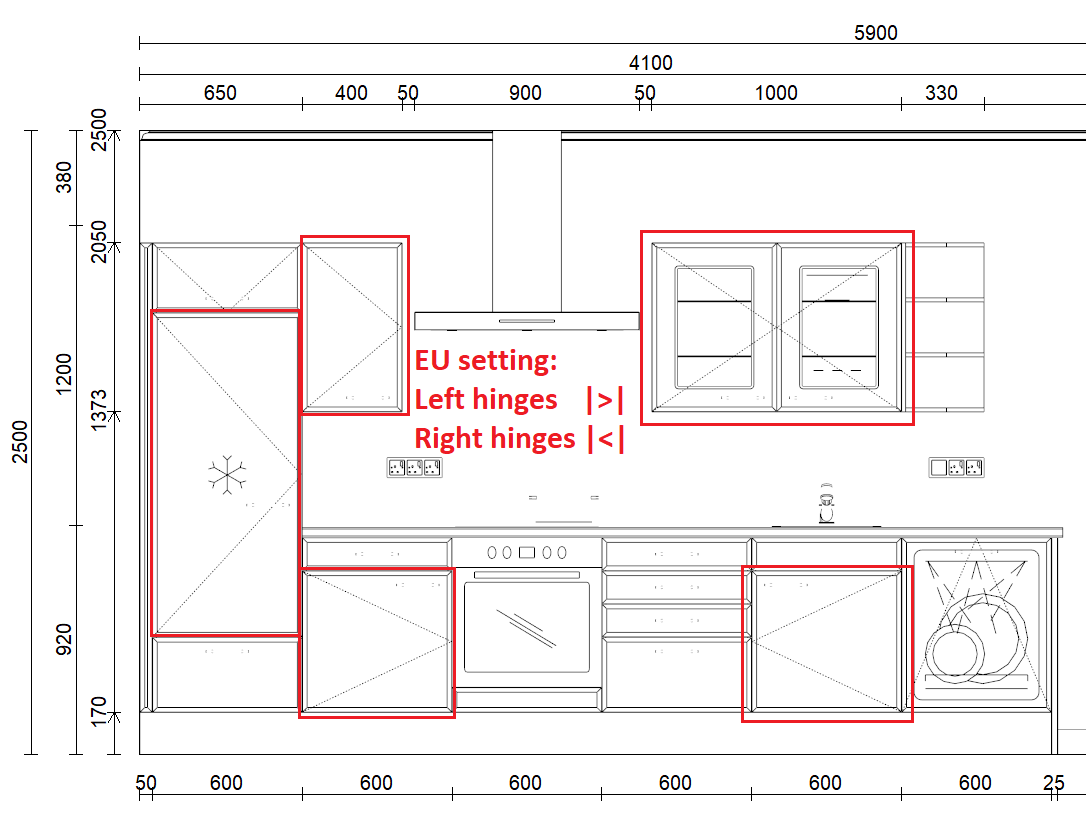

European hinge symbols
|>| for left hinged doors
|<| for right hinged doors
