How to have two different toekick heights

Bally
  • Updated
Not yet followed by anyone
  1. Click on Alternative in the Menu bar and select Settings, or press F7.

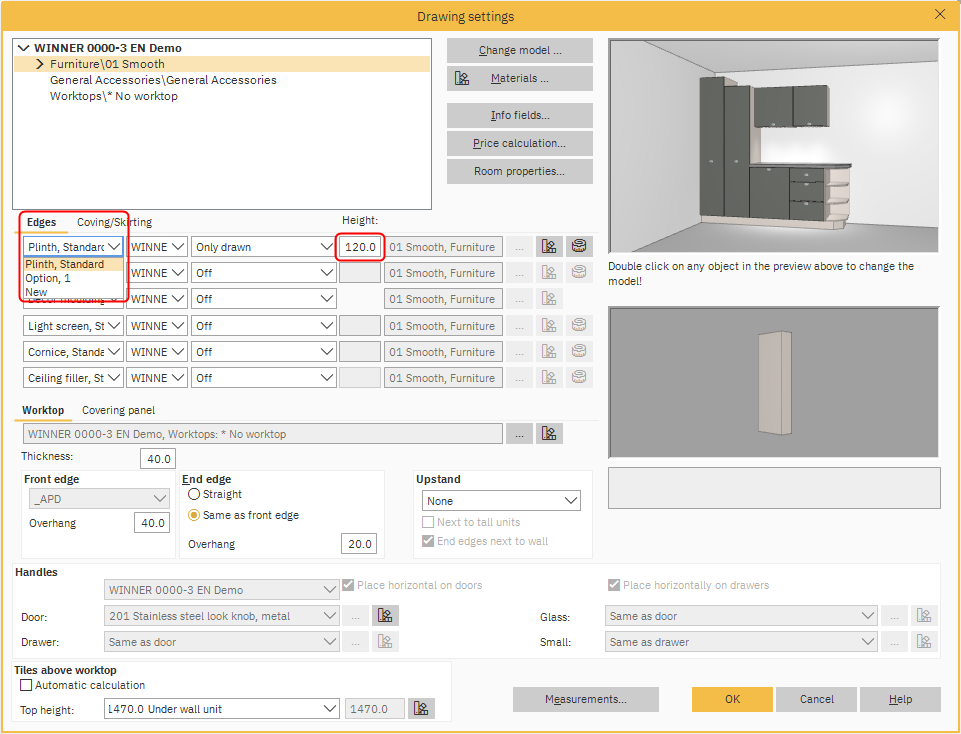

  2. In the Drawing Settings window, select the Plinth drop-down in the Edges section.

  3. Select New.
    Once you have selected new, Drawing settings will set and number it as an option.  These options will be numbered for clarity.


  4. Ensure the option is selected.

  5. In the height box, enter your required height.

  6. Click OK.

  7. Select the units to have plinth height altered.

  8. Right-click and select Set height type.

  9. Select your new height type option in the Set height position drop-down.



  10. Click OK to confirm changes.

    Note: For more information on customizing toekicks, for example, having multiple colours of toekicks in the same room, see Adding multiple toekicks, cornices and pelmets to the same room.
