There are some instances where you may wish to order a filler or panel slightly bigger than it is shown in the plan. For example when a wall is not quite straight and the installer needs a larger filler or panel so they can fit this precisely to the wall.
When this is the case you can add the additional amount required without changing the object in the plan.
Follow the steps below to achieve this:
Note: some dimensions may be restricted by the manufacturer (in our example below you cannot change the width of the object).
- Once the object is placed in the plan right click on it and select Properties.

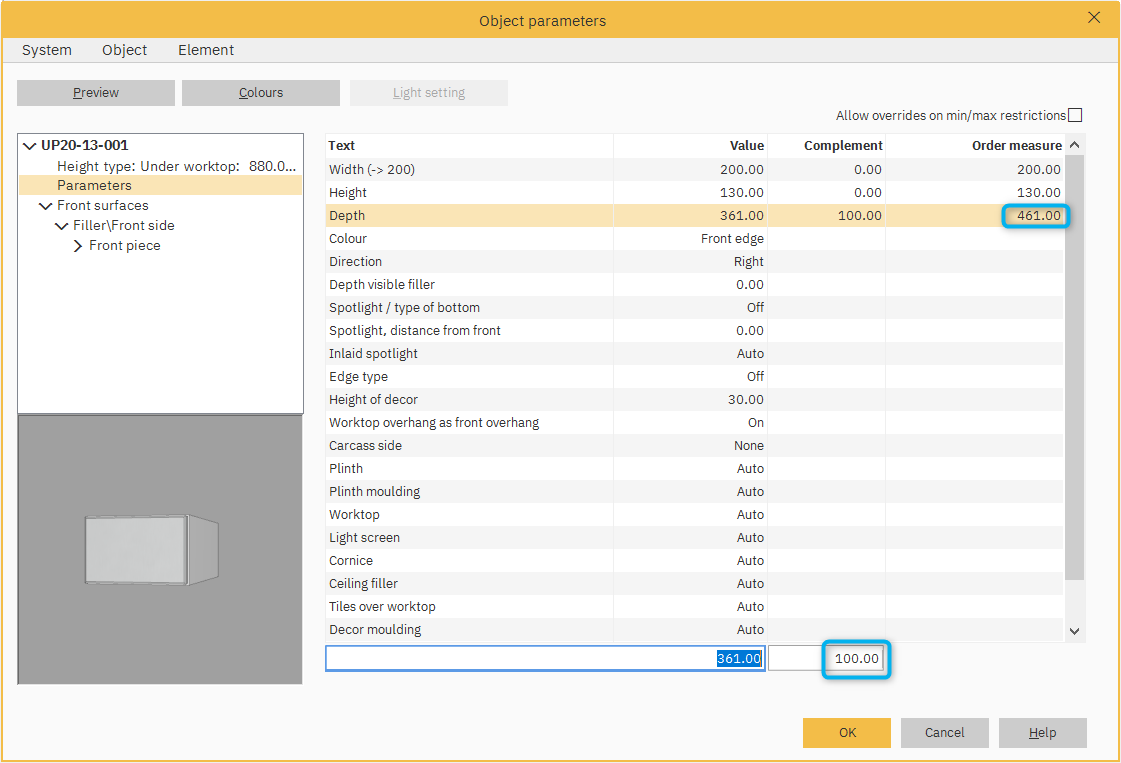

- This opens the Object parameters window.
- Select the row (in our example Depth 361) that you want to change the value for.
- In the field at the bottom of the window, under the Complement column enter the additional value you want adding to the object (in our example we have entered an extra 100mm on the depth of the object)
- Winner then calculates the Order Measure, this is what will be ordered from the manufacturer.

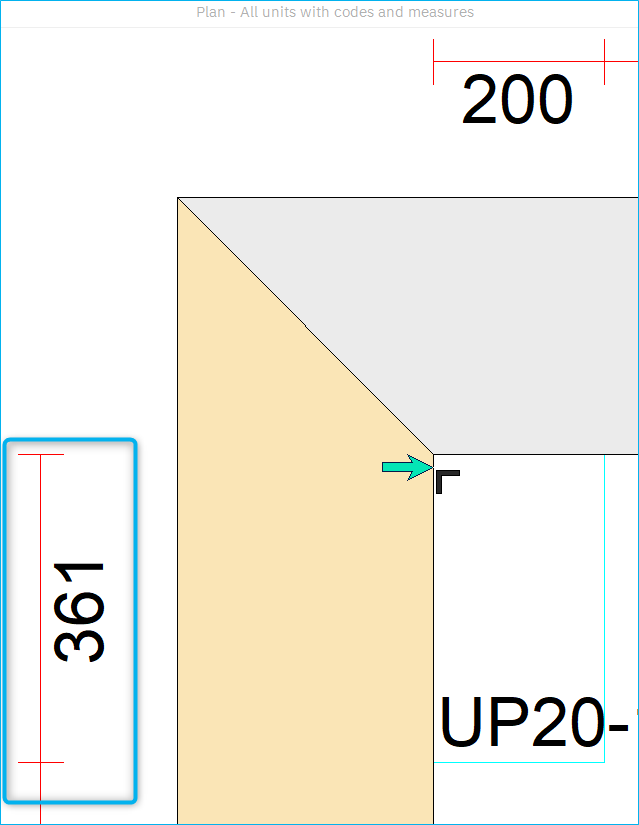

- The plan still shows the original depth of the object.
