In Winner, users can change elements in a unit, such as doors, drawers and racks. Users can replace any of these elements in the carcass with another.
Note! Some replacement elements, such as electrical appliances, may not fit correctly. Instead, it may be necessary to rebuild the unit to ensure there is enough space for all the desired elements. See Rebuilding a unit.
At Alternative, in Furnishing mode:
- Select the unit.
- Right-click and select Properties.

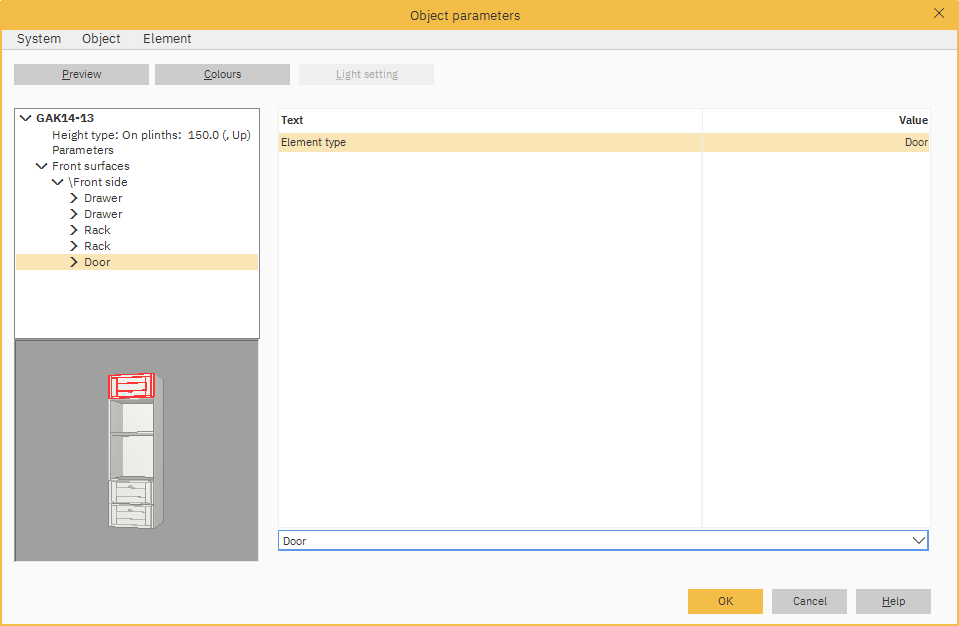

Note: Users can also press Ctrl+F5 on the keyboard, or double-click the unit. - In Object Parameters select Front surfaces.
Note: The element listed first under Front surfaces will be the element closest to the base of the unit. - Under Front surfaces, select the element you wish to replace.
- Under Text, select Element type.
Note: The current element will be displayed under Value. - Click the drop-down box at the bottom of the Object parameters window, and select the new element that will replace the current element.
Note: The new element will now be visible in the unit preview. If the new element is not positioned correctly, see Rebuilding a unit. - Click OK.
