In Winner, you can delete and insert elements from units in your Alternative, such as doors, drawers and racks. For example, if a built in appliance is not positioned correctly, you can use these functions to customise the unit so that it fits, or you can add or remove more appliances. You can also replace elements within units, see Replacing elements in a unit.
At Alternative, whilst in Furnishing mode:
- Select the unit.
- Right click and select Properties...
Note: You can also press Ctrl+F5 on your keyboard, or double-click the unit.

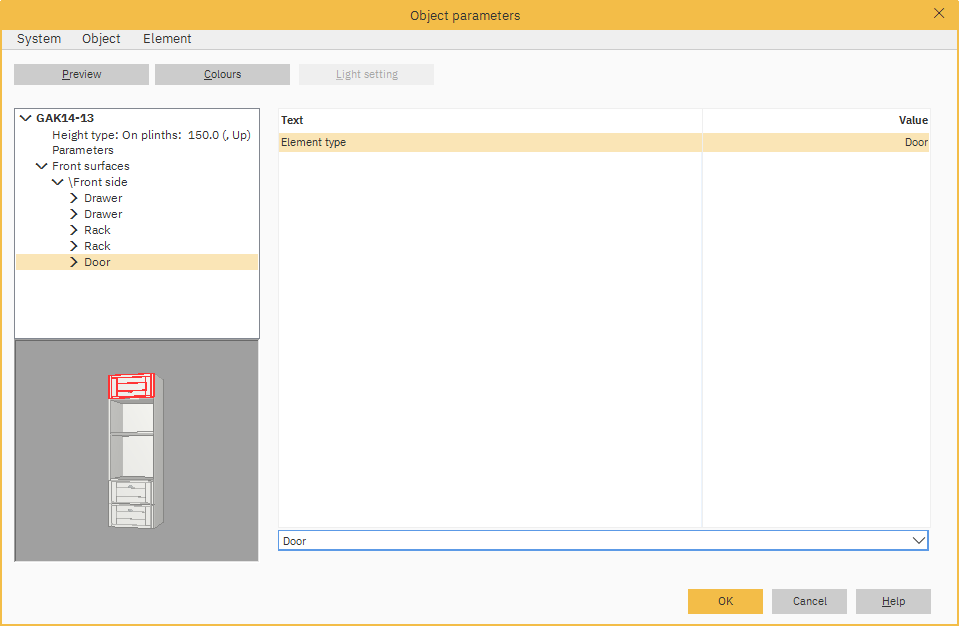

- In Object Parameters select Front surfaces.
Note: The element listed first under Front surfaces, will be the element closest to the base of the unit. It is easiest to use the picture preview to select the element.
- Select the top Front surface and then select Element > Delete element. You can carry out this action multiple times.
Note: it is recommended to delete elements from the top of the unit downwards.
- When finished deleting elements, select Element > Insert element.
Note: The elements are inserted from the bottom upwards.
- Select an Element from the list and then enter the desired Height. You can carry out this action multiples times. Select 32767 Anything to leave space for an appliance, which Winner will prompt you to add later.
Note: If you do not specify a height, Winner will automatically calculate the element height as the remaining height of the cabinet.
- When finished, click OK.
-
In Extra Codes you can add a new item to the unit, by clicking the New button, selecting Item line... and entering a code or by clicking the more options icon
and browsing the catalogue.
Note: In Extra Codes, you can also change supplier catalogue to add one or more items from a different supplier.
