At Project level to change all future projects or at Design level to change one design:

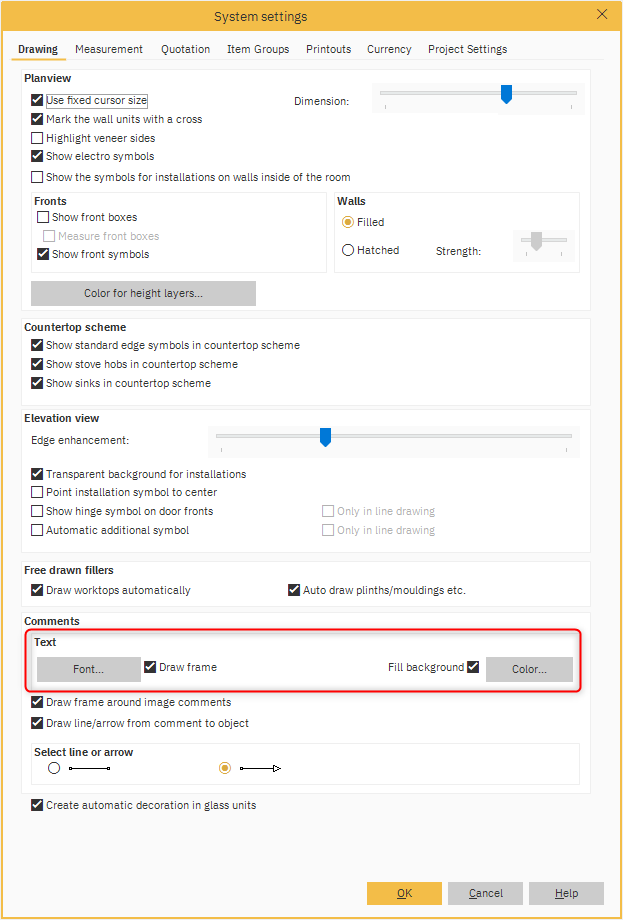

- Start the menu option Global settings > System settings. The Drawing tab will appear.
- Click on button Font in the group box Comments, if you want to change the font type, style, size or color.
- Change the appearance of the font as required. A preview of the selected setting will be shown in the Sample field.
- Click OK to save the font changes and Winner Design will return to the System settings window.
- Untick the checkboxes Draw frame and Fill background if you want the frame and the background color to be transparent.
- Click on the button Color if you want to change the background color inside the frame of the comments. The field Fill background has to be ticked to show the background color in the plan. In this window you can select between the following color types: NCS, RGB, CMYK, RAL Classic or RAL Design System.
- Left-click on tab/name of the relevant color type you want to use.
- Select required background color for the comment boxes.
- Click OK to save the change.
Note: If you open the menu option System settings and select the Drawing tab from the design level, some of the fields are marked with an asterisk (*) in front of them. If you change any of these fields, the changes will only affect the current design, and new designs that are created later on in the same space of this project. The changes will however not work retrospectively, so old projects and designs will not be affected.
If you open the same menu option from the project level, the changes will only affect the new projects and designs. That is: The changes will not work retrospectively, so old projects and designs will not be affected.
