Standard products are the components you can add to a plan which are not part of any manufacturers' catalogue. There is a large range of items/props to add some personality to your plan, like plants, curtains, light fixtures, table ornaments or pictures. You can also use the building blocks to build advanced shapes as required.

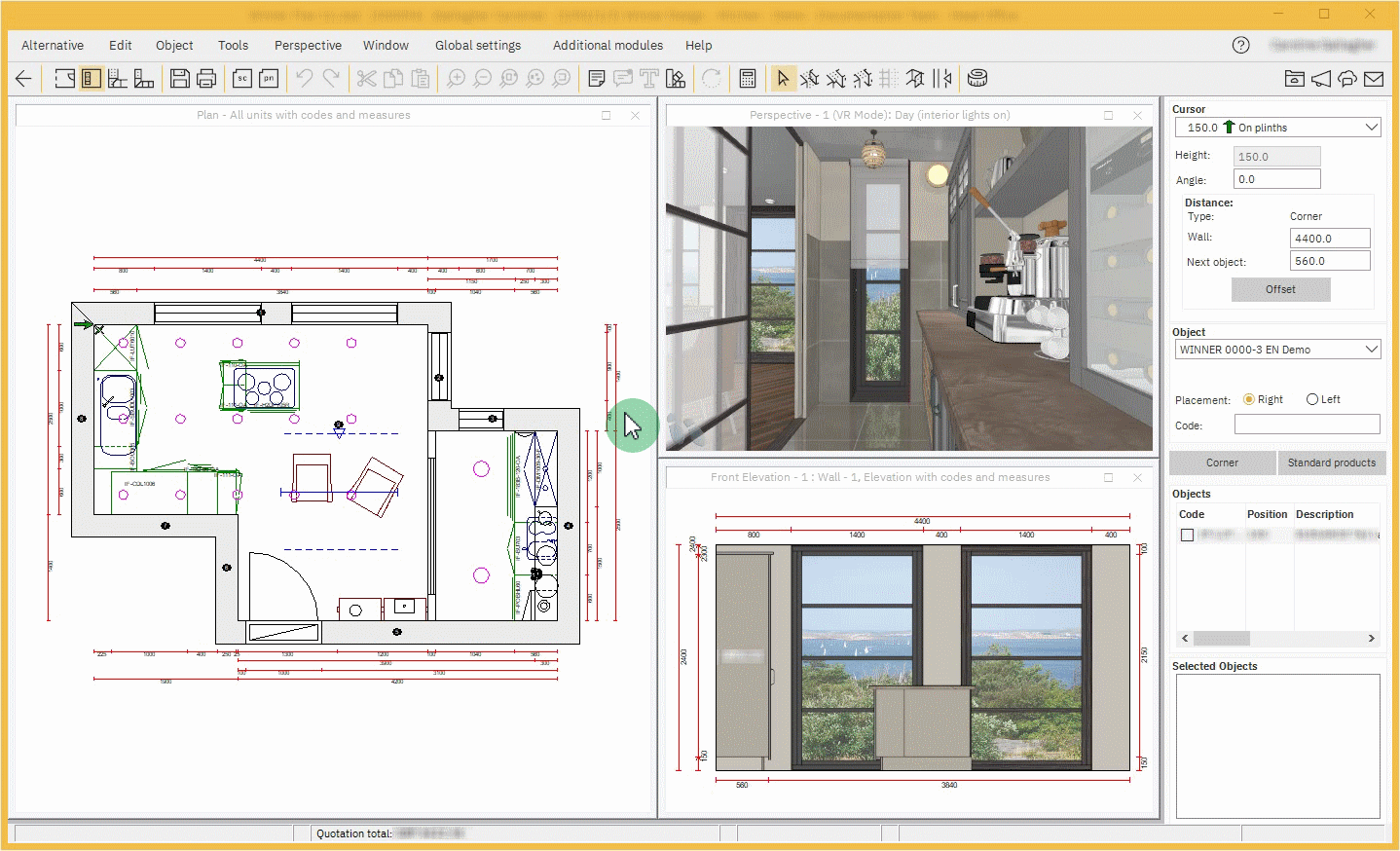

Standard products is located on the right side of the screen when in Furnishing mode.
Access Standard products

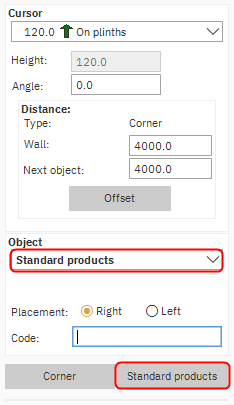

Access Standard products by clicking the button:
Or select the Standard products catalogue from the Object drop-down and double-click in the Code box:
Select Object

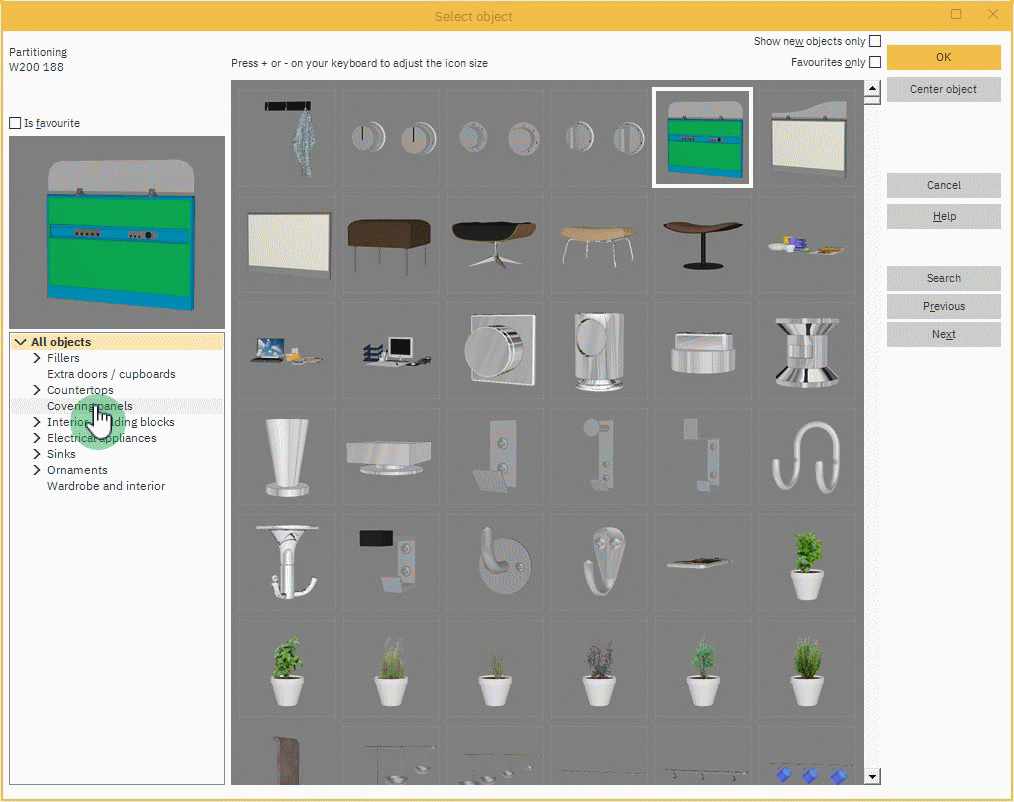

Winner will show all the objects that belong to the search group you have selected to the left. You can also create favorites of objects you regularly use. See Creating a library of favorites for more details.

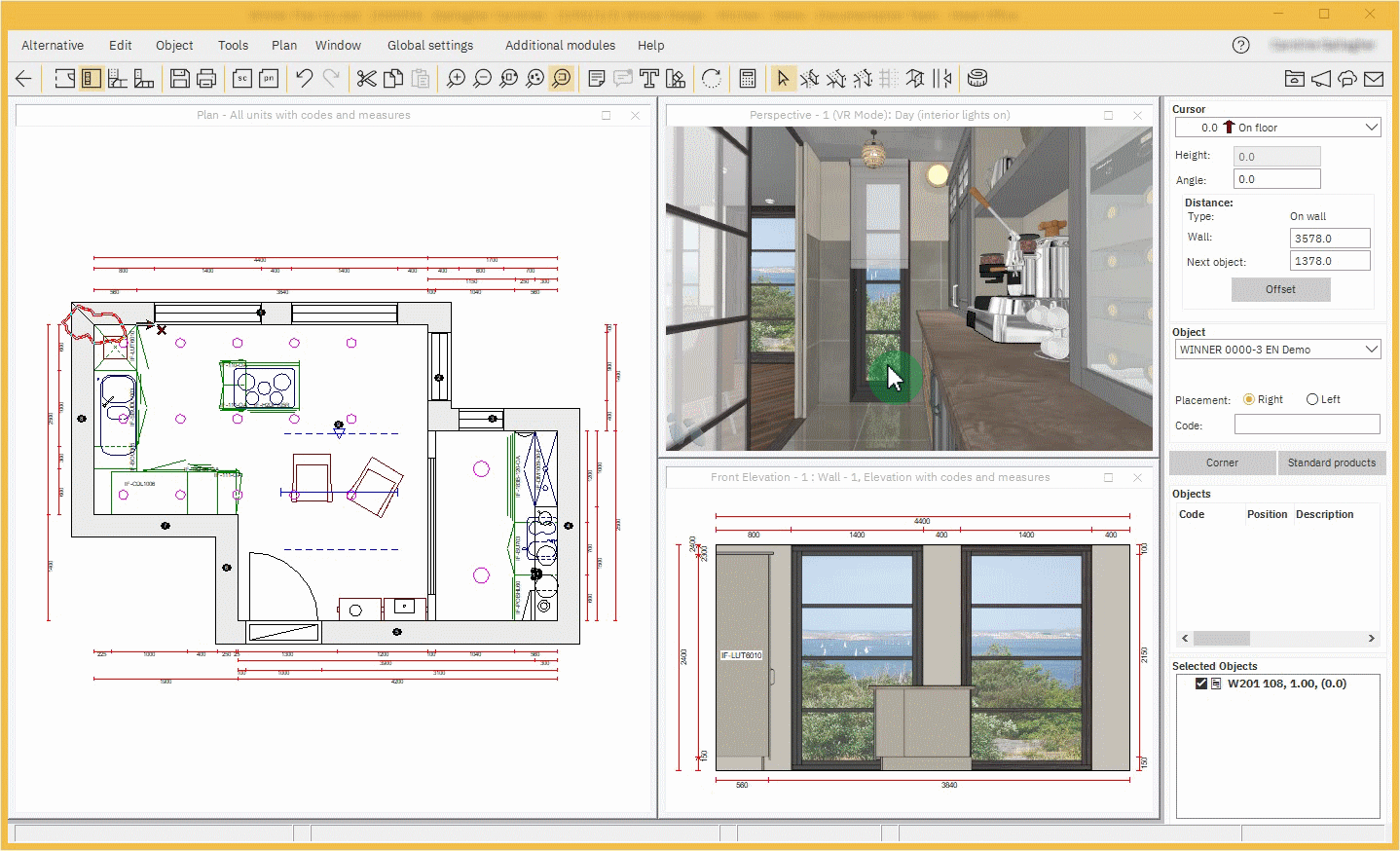

Click on the object of which you want a larger preview. The object that is highlighted will be displayed in a larger preview window in the top left of the window. The large preview window can be rotated by holding down the left mouse button whilst at the same time dragging the mouse button in the desired direction. It can be enlarged or made smaller by using the central mouse wheel or by pressing the Ctrl button whilst at the same time holding down the left mouse button and dragging the mouse button upwards/downwards in the window.
To select certain product groups from one of the standard catalogues in Winner, you can view them by right clicking on the Standard products button.
Creating a library of favorites
To create - Once you have selected an object click the check box Is favorite, which is found above the preview window. Using this method you can add as many favorites to your library as you require.
To retrieve them - When you open Standard products, click the Favorites only check box, which is found next to the OK button, this will then only show what you have saved to your library.
Note: Don't forget to untick it when you're finished otherwise every time you open Standard products it will only show your favorites.
