Using the Drawing settings in Winner you can add a toekick molding.
Only Drawn
Toekick molding may not be a feature a manufacturer's catalogue provides, and in these cases the toekick molding is listed as Only Drawn. This means that you are not ordering anything and no charges are calculated.
Add a molding
- In your Alternative, press F7 to open the Drawing settings.

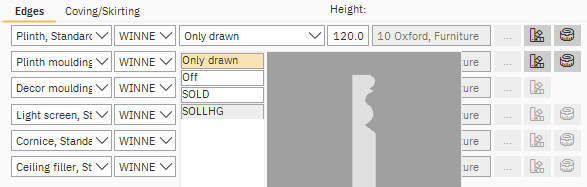

- In the Drawing settings window find the Plinth molding drop-down in the Edges section. Click the Off drop-down to the right.
If the catalogue you are using features toekick molding articles, the reference will be listed in this drop-down. The shape preview will appear to the right as you select your molding. - Select your molding or select Only drawn if no others are available.
- Confirm the model and material to be used on the molding.
- In the Drawing settings window, click OK to confirm your choice.
You can add multiple moldings using the same method as adding multiple toekicks. See article Adding multiple toekicks, cornices, pelmets and ceiling fillers to the same room, for more information.
Adjustments can be made to the molding by selecting the Assign material and Indent values tool icons in the Drawing settings. They are listed on the right hand side of the edges list:
Assign Material to the Surface
In this window you can assign a different material if required.
Indent values
In this window you can select the Indent required. Untick Use default to make adjustments.
