Certain catalogues are set up to allow different measure sets or height grids. When you first choose your Model using a catalogue geared up for different measure sets, it will be an option in the Select Model window. Click on the Measure Set drop-down and select your required base unit height.
To change this height grid in an existing plan, take the following steps:
- Click on Alternative in the Menu bar and go to Change catalogues.
- If your Alternative has not been saved, you will be prompted to save before changing catalogues. Click Yes.
- In the Change catalogue from window, select the catalogue you want to change the height grid on.
- Click Change.

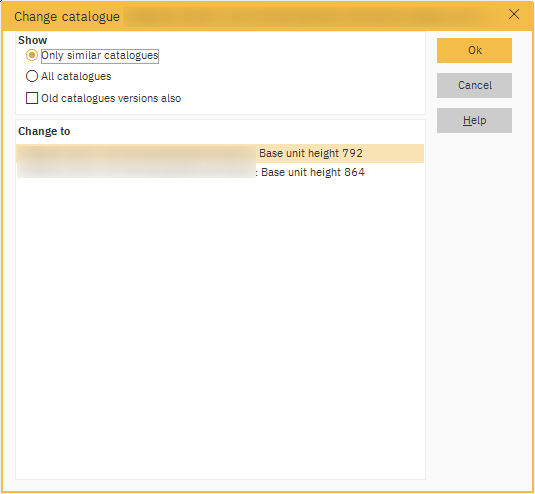

- The alternate measurement sets will be listed as catalogue versions you can change to. Select the height you now require and click OK.

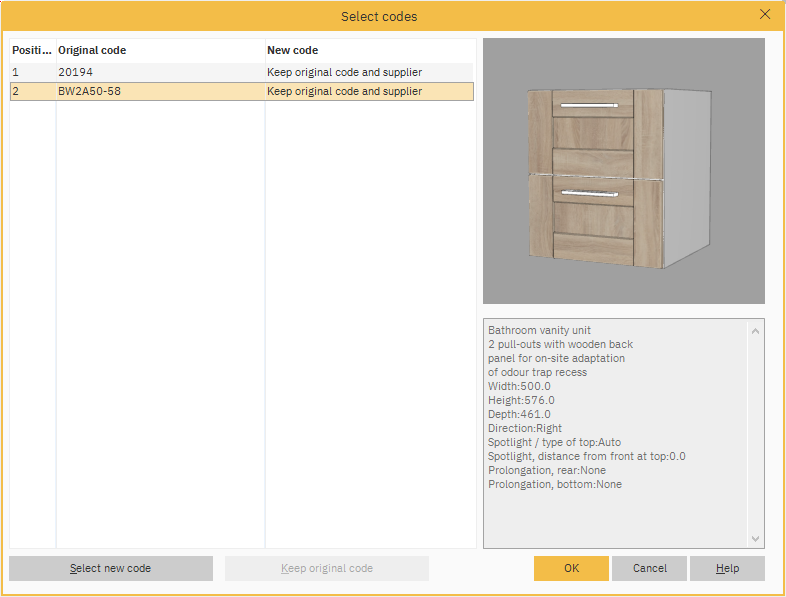

- The Select codes window will list the codes in the alternative. If necessary new codes will be suggested on the right. Click OK to accept the suggestions.
- If there are no suggestions of different codes to confirm no changes to the codes, click OK.
- The Select Model window will appear to confirm any model changes in the new height grid. Click OK when happy with model choices.
- Click Close on the Change catalogue window.
