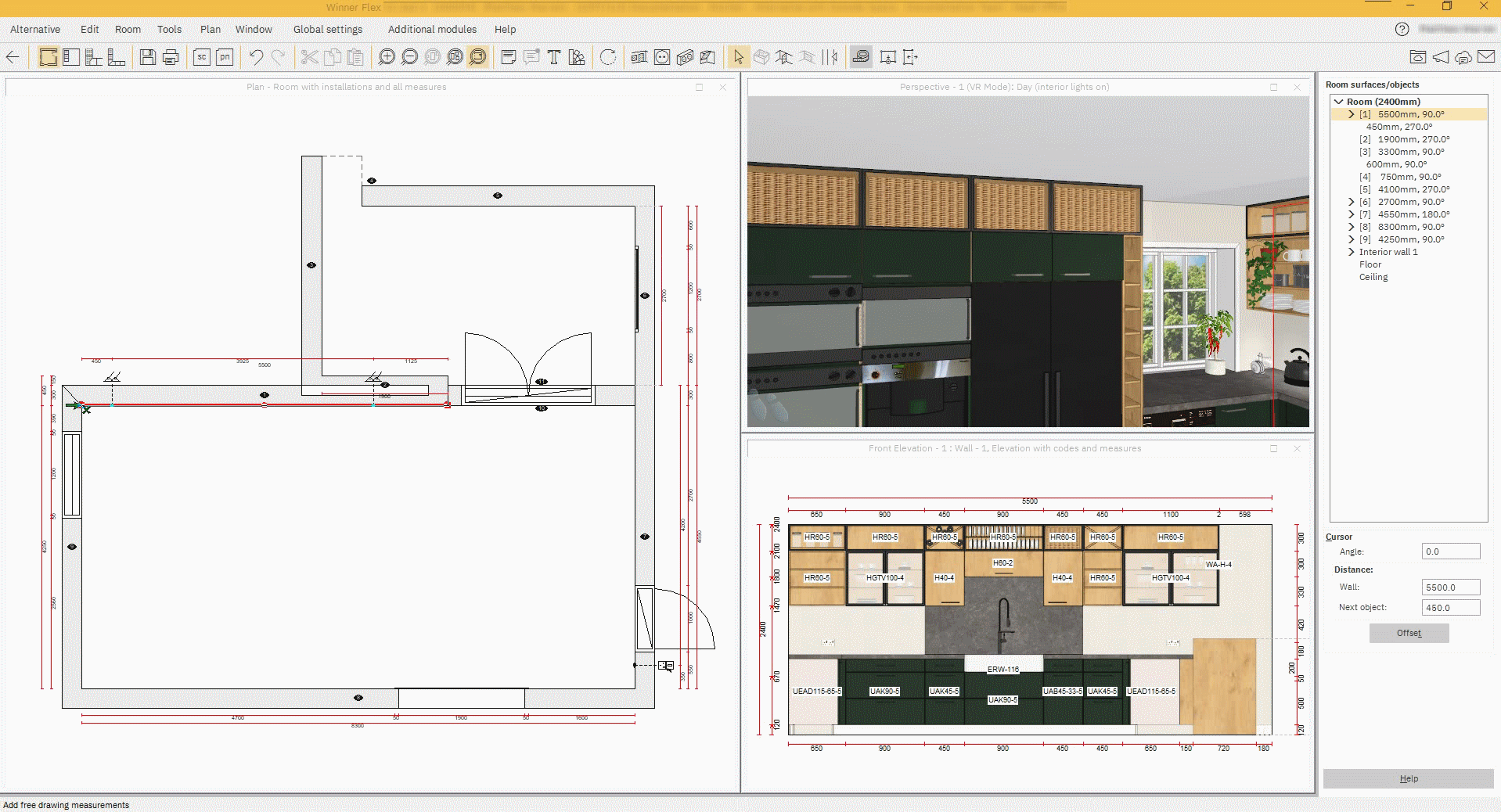

In Winner, when in Room definition mode users can find the Room surfaces/objects menu and the Cursor menu located on the right side of the screen.
Room surfaces/objects
Under Room surfaces/objects, users can:
- See an overview of all surfaces in the room, such as walls, the floor and ceiling, and of the objects added to those surfaces, such as installation symbols, objects and sloping ceiling objects.
- Left-click a surface, or object added to a surface, to highlight it, which will also highlight the corresponding surface in the Plan and Elevation windows.
- Right-click a surface, or an object added to a surface, to see further options, for example adding installation symbols and objects to walls, accessing decors and adding comments.
Cursor
Under Cursor, users can:
- See an overview of the cursors current position in the Angle, Distance - Wall and Distance - Next object fields.
Note: The Distance - Wall and Distance - Next object are determined by the direction the cursor is pointing in. - Click the Offset button to change the cursor position. For more information, see Changing the cursor position.
